TM097TDHG04-02

Your location: Home > Products > TIANMA > 9.7 >
  • Module No:TM097TDHG04-02
  • Brand:TIANMA
  • Size:9.7 inch
  • Resolution:1024(RGB)×768 , XGA
  • Brightness:350 cd/m²
  • Viewing angle:70/70/60/70 (Typ.)
  • Interface:LVDS (1 ch, 6-bit) , 30 pins
  • CR:500:1
  • Operating Temp.: -20 ~ +70 (°C)
  • Parameters
  • Description
  • Manufacturer  TIANMA
    Model Name TM097TDHG04-02
    Screen Size 9.7 inch
    Pixel Number 1024(RGB)×768 , XGA
    Active Area(mm) 196.61 x 147.46 (H×V)
    Outline(mm) 210.20 x 166.30 x 3.28 (H×V×D)
    Pixel pitch(mm)
    0.192 x 0.192 (H×V)
    Treatment
    Clear
    Luminance 350 cd/m² (Typ.)
    Contrast Ratio 500 : 1 (Typ.) (TM)
    Viewing Angle 70/70/60/70(CR≥10) Left / Right/UP /Down
    Response 20/25 (Typ.)(Tr/Td) ms
    Work Mode TN, Normally white, Transmissive
    Color Depth 262K , 50% NTSC
    Backlight WLED , 30K hours,without driver
    Net Weight 200g
    Touchscreen without
    Signal Type/interface Type LVDS (1 ch, 6-bit) , 30 pins
    Voltage Supply 3.3V
    Max. Ratings Storage Temp.: -30 ~ +80 (°C)
    Operating Temp.: -20 ~ +70 (°C)
    Package TIANMA Original Package;
    20 pcs/ctn;
    weight : 6.632Kgs;
    size : 530(L)mm x 350(W)mm x 250(H)mm

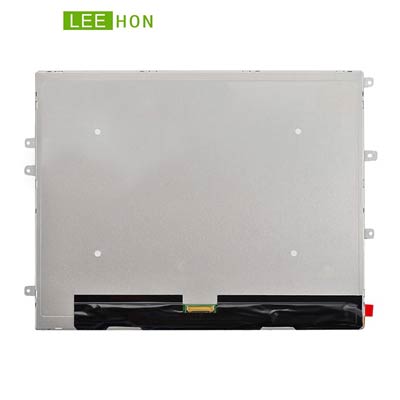

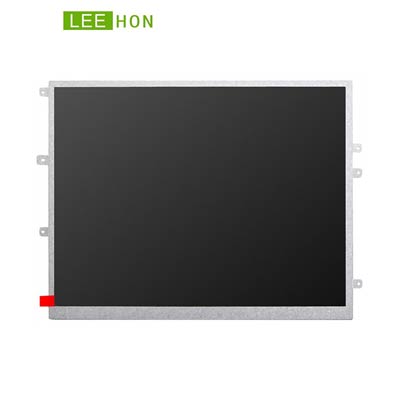

  • TIANMA 9.7 inch tft lcd panel TM097TDHG04-02 with 1024x768 XGA resolution , brightness 350 cd/m². This lcd display is working temperature is -20 ~ +70 (°C) and its storage temperature is  -30 ~ +80 (°C). Based on its white LED backlight. This model is recommended for industrial use.
    Matched Resistive touch and Capacitive touch available.also we have matched HDMI driver board and LVDS cables.
    Original 9.7 inch 1024x768 XGA TIANMA TFT LCD Screen Panel For Industry TM097TDHG04-02 with 350 nit, Touchscreen and Controller board.



    Hangzhou LEEHON Technology is one of the main agents of AUO/BOE / Kyocera/ Innolux TFT- LCD module in China mainland, founded in 2009, the products vary from 2.5 to 43 inches, which include GD (Industrial grade), AV (car class), PID (General Application) and other related products etc.,superior quality and competitive price, our products are sold very well in North&South America, Western Europe and Southeast Asia.
    We can supply total set of display solution:
    TFT LCD screen + touch screen + controller board + cables + open frame.
    stock for sale
    long-time supply
    no MOQ
    in fulll range
