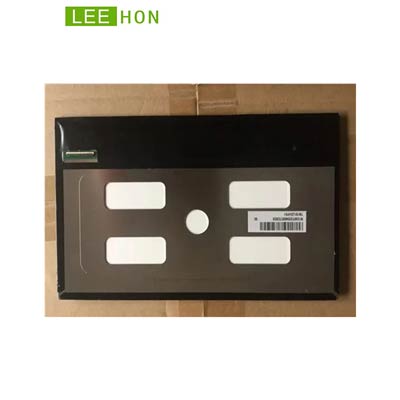

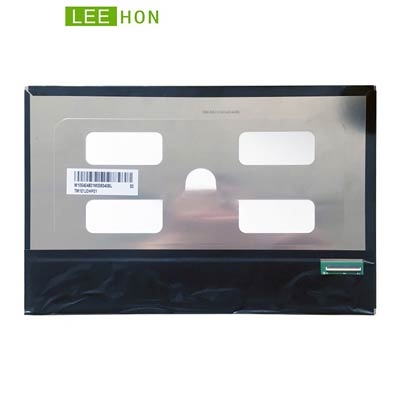

TM101JDHP01

Your location: Home > Products > TIANMA > 10.1 >
  • Module No:TM101JDHP01
  • Brand:TIANMA
  • Size:10.1 inch
  • Resolution:1280(RGB)×800 , WXGA
  • Brightness:400 cd/m²
  • Viewing angle:85/85/85/85 (Typ.)
  • Interface:LVDS (1 ch, 8-bit) , 40 pins
  • CR:800:1
  • Operating Temp.: -10 ~ +50 (℃)
  • Parameters
  • Description
  • Manufacturer  TIANMA
    Model Name TM101JDHP01
    Screen Size 10.1 inch
    Pixel Number 1280(RGB)×800 , WXGA
    Active Area(mm) 216.96 x135.60  (H×V)
    Outline(mm) 229.46 x 149.10 x 2.50 (H×V×D)
    Pixel pitch(mm) 0.1695 x 0.1695 (H×V)
    Treatment HC
    Luminance 400 cd/m² (Typ.)
    Contrast Ratio 800 : 1 (Typ.) (TM)
    Viewing Angle 85/85/85/85 (CR≥10) Le135.60ft / Right/UP /Down
    Response 10/15 (Typ.)(Tr/Td) ms
    Work Mode SFT , Normally black, Transmissive
    Color Depth 16.7M , 50% NTSC
    Backlight WLED , 30K hours, without driver
    Net Weight 180g
    Touchscreen without
    Signal Type/interface Type LVDS (1 ch, 8-bit) , 40 pins
    Voltage Supply 3.3V
    Max. Ratings Storage Temp.: -20  ~ +60 (°C)
    Operating Temp.: -10 ~ +5(°C)
    Package TIANMA original package

  • TIANMA 10.1 inch tft lcd panel TM101JDHG40 with 1280(RGB)x800 WSVGA resolution , brightness 400 cd/m². This lcd display is working temperature is -20 ~ +70 (°C) and its storage temperature is  -30 ~ +80 (°C). Based on its white LED backlight. This model is recommended for industrial use.
    Matched Resistive touch and Capacitive touch available.also we have matched HDMI driver board and LVDS cables.
    Original 10.1 inch 1280x800 WXGA TIANMA TFT LCD Panel IPS Screen For IndustryTM101JDHG40 with 400 nit,Touchscreen and Controller board.



    Hangzhou LEEHON Technology is one of the main agents of AUO/BOE / Kyocera/ Innolux TFT- LCD module in China mainland, founded in 2009, the products vary from 2.5 to 43 inches, which include GD (Industrial grade), AV (car class), PID (General Application) and other related products etc.,superior quality and competitive price, our products are sold very well in North&South America, Western Europe and Southeast Asia.
    We can supply total set of display solution:
    TFT LCD screen + touch screen + controller board + cables + open frame.
    stock for sale
    long-time supply
    no MOQ
    in fulll range
