TM104SDH03

Your location: Home > Products > TIANMA > 10.4 >
  • Module No:TM104SDH03
  • Brand:TIANMA
  • Size:10.4 inch
  • Resolution:800(RGB)×600 , SVGA
  • Brightness:400 cd/m²
  • Viewing angle:70/70/60/70 (Typ.)
  • Interface:LVDS (1 ch, 6/8-bit) , 20 pins
  • CR:500:1
  • Operating Temp.: -30 ~ +80 (°C)
  • Parameters
  • Description
  • Manufacturer  TIANMA
    Model Name TM104SDH03
    Screen Size 10.4 inch
    Pixel Number 800(RGB)×600 , SVGA
    Active Area(mm) 211.20 x 158.40 (H×V)
    Outline(mm) 243.00 x 179.40 x 8.5 (H×V×D)
    Pixel Pitch(mm) 0.264 x 0.264 (H×V)
    Treatment
    Anti-Glare(3H)
    Luminance 400 cd/m² (Typ.)
    Contrast Ratio 500 : 1 (Typ.) (TM)
    Viewing Angle 70/70/60/70(CR≥10) Left / Right/UP /Down
    Response time 10/15 (Typ.)(Tr/Td) ms
    Display Mode TN, Normally white, Transmissive
    Color Depth 262K/16.7M , 50% NTSC
    Backlight WLED, 50K hours, with LED Driver
    Net Weight 433g
    Touchscreen without
    Signal Type/interface Type LVDS (1 ch, 6/8-bit) , 20 pins
    Voltage Supply +3.3V
    Max. Ratings Storage Temp.: -30 ~ +85 (°C)
    Operating Temp.: -30 ~ +8(°C)
    Package Tianma Original package;
    20 pcs/ctn;
    size : 530(L)mm x 350(W)mm x 250(H)mm

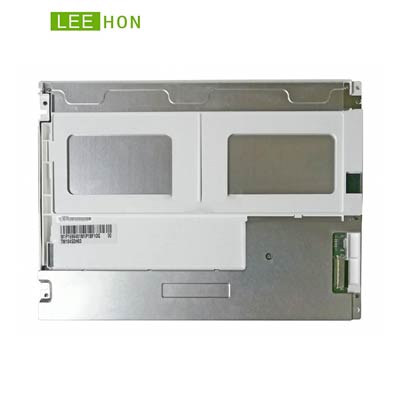

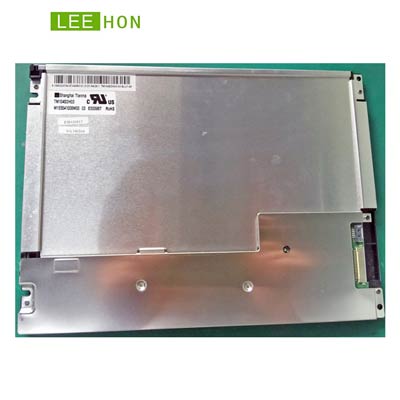

  • TIANMA 10.4 inch tft lcd panel TM104SDH03 with 800(RGB)×600 SVGA resolution, brightness 400 cd/m². This lcd display is working temperature is -30 ~ +80 (°C) and its storage temperature is  -30 ~ +85 (°C). Based on its white LED backlight. This model is recommended for industrial use.
    Matched Resistive touch and Capacitive touch available. Also we have matched HDMI driver board and LVDS cables.
    Original Tianma 10.4 Inch 800x600 SVGA TFT LCD Panel LVDS Screen For Industry TM104SDH03 With 400nitis, Touchscreen And Controller Board.



    Hangzhou LEEHON Technology is one of the main agents of AUO/BOE / Kyocera/ Innolux TFT- LCD module in China mainland, founded in 2009, the products vary from 2.5 to 43 inches, which include GD (Industrial grade), AV (car class), PID (General Application) and other related products etc.,superior quality and competitive price, our products are sold very well in North&South America, Western Europe and Southeast Asia.
    We can supply total set of display solution:
    TFT LCD screen + touch screen + controller board + cables + open frame.
    stock for sale
    long-time supply
    no MOQ
    in fulll range
