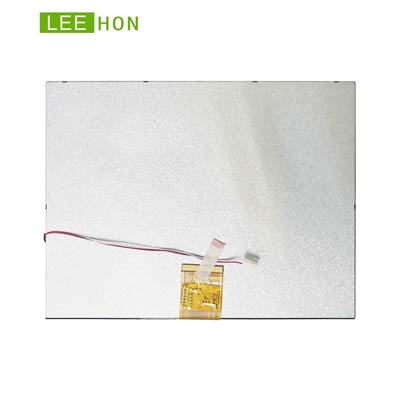

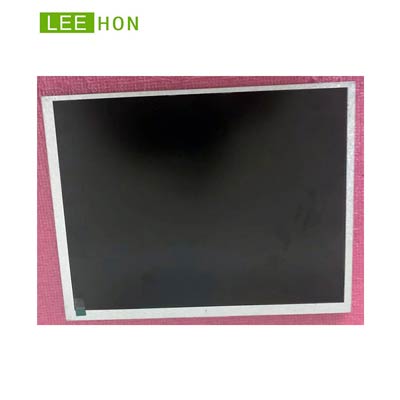

TM104SDHG30-71

Your location: Home > Products > TIANMA > 10.4 >
  • Module No:TM104SDHG30-71
  • Brand:TIANMA
  • Size:10.4 inch
  • Resolution:800(RGB)×600 , SVGA
  • Brightness:350 cd/m²
  • Viewing angle:70/70/60/70 (Typ.)
  • Interface:Parallel RGB (1 ch, 6/8-bit) , FPC , 60 pins
  • CR:500:1
  • Operating Temp.: -20 ~ +70 (°C)
  • Parameters
  • Description
  • Manufacturer  TIANMA
    Model Name TM104SDHG30-71
    Screen Size 10.4 inch
    Pixel Number 800(RGB)×600 , SVGA
    Active Area(mm) 211.2 x 158.4 (H×V)
    Outline(mm) 228.4 x 175.4 x 6.2 (H×V×D)
    Pixel Pitch(mm) 0.264 x 0.264 (H×V)
    Treatment
    Anti-Glare
    Luminance 350 cd/m² (Typ.)
    Contrast Ratio 500 : 1 (Typ.) (TM)
    Viewing Angle 70/70/60/70(CR≥10) Left / Right/UP /Down
    Response time 10/15 (Typ.)(Tr/Td) ms
    Display Mode TN , Normally white , Transmissive
    Color Depth 262K/16.7M , 50% NTSC
    Backlight WLED, 30K hours, without Driver
    Net Weight 360g
    Touchscreen without
    Signal Type/interface Type Parallel RGB (1 ch, 6/8-bit) , FPC , 60 pins
    Voltage Supply +3.3 V
    Max. Ratings Storage Temp.: -30 ~ +80 (°C)
    Operating Temp.: -20 ~ +70 (°C)
    Package Tianma Original package;
    20 pcs/ctn;
    weight : 9.83Kgs;
    size : 530(L) x 350(W) x 250(H) mm

  • TIANMA 10.4 inch tft lcd panel TM104SDHG30-71 with 800(RGB)×600 SVGA resolution, brightness 350 cd/m². This lcd display's working temperature is -30 ~ +80 (°C) and it's storage temperature is  -30 ~ +85 (°C). Based on it's white LED backlight. This model is recommended for industrial use.
    Matched Resistive touch and Capacitive touch available. Also we have matched HDMI driver board.
    Industrial 10.4 inch 800x600 SVGA LCD Panel Original TIANMA TFT LCD Screen TM104SDHG30-71 with 350nits, Controller board and Touchscreen.



    Hangzhou LEEHON Technology is one of the main agents of AUO/BOE / Kyocera/ Innolux TFT- LCD module in China mainland, founded in 2009, the products vary from 2.5 to 43 inches, which include GD (Industrial grade), AV (car class), PID (General Application) and other related products etc.,superior quality and competitive price, our products are sold very well in North&South America, Western Europe and Southeast Asia.
    We can supply total set of display solution:
    TFT LCD screen + touch screen + controller board + cables + open frame.
    stock for sale
    long-time supply
    no MOQ
    in fulll range
