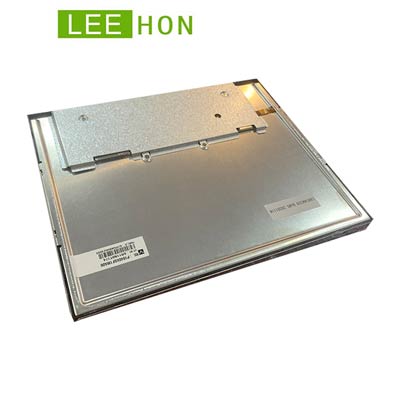

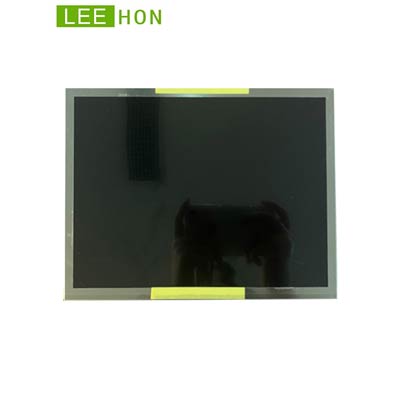

| Manufacturer | TIANMA |
| Model Name | P1160FHF1MA00 |
| Screen Size | 11.6 inch |
| Pixel Number | 1920(RGB)×1080 , FHD |
| Active Area(mm) | 256.32 x 144.18 (H×V) |
| Outline(mm） | 273.50 x 166.50 x 7.80 (H×V×D) |
|
Pixel Pitch(mm)
|
0.1335 x 0.1335 (H×V)
|
| Treatment |
HC
|
| Luminance | 1600 cd/m² (Typ.) |
| Contrast Ratio | 900 : 1 (Typ.) (TM) |
| Viewing Angle | 88/88/88/88 (Typ.) |
| Response | 25 (Typ.)(Tr/Td) ms |
| Work Mode | SFT , Normally black , Transmissive |
| Color Depth | 262K/16.7M , 70% NTSC |
| Backlight | WLED, 30K hours,without driver |
| Net Weight | 525g |
| Touchscreen | without |
| Signal Type/interface Type | LVDS (2 ch, 6/8-bit) , 30 pins |
| Voltage Supply | 3.3V |
| Max. Ratings |
Storage Temp.: -30 ~ +85 (°C) Operating Temp.: -20 ~ +80 (°C) |
| Package |
TIANMA Original Package; 14 pcs/ctn; weight : 6.09Kgs; size : 530(L)mm x 430(W)mm x 274(H)mm |
