P1160FHF1MA01

Your location： Home
  • Products
  • TIANMA
  • 11.6
    • Module No：P1160FHF1MA01
    • Brand：TIANMA
    • Size：11.6 inch
    • Resolution：1920(RGB)×1080 , FHD
    • Brightness：1000 cd/m²
    • Viewing angle：88/88/88/88 (Typ.)
    • Interface：LVDS (2 ch, 8-bit) , 30 pins
    • CR：900:1
    • Operating Temp.: -20 ~ +70 (°C)
    • Parameters
    • Description
    • Manufacturer  TIANMA
      Model Name P1160FHF1MA01
      Screen Size 11.6 inch
      Pixel Number 1920(RGB)×1080 , FHD
      Active Area(mm) 256.32 × 144.18 (H×V)
      Outline(mm） 273.50 × 166.50 × 7.80 (H×V×D)
      Pixel Pitch(mm) 0.1335 × 0.1335 (H×V)
      Treatment HC
      Luminance 1000 cd/m² (Typ.)
      Contrast Ratio 900 : 1 (Typ.) (TM)
      Viewing Angle 88/88/88/88 (CR≥10) Left / Right/UP /Down
      Response time 35 (Typ.)(Tr/Td) ms
      Display Mode SFT , Normally black , Transmissive
      Color Depth 262K/16.7M , 72% NTSC
      Backlight WLED , 50K hours , without Driver
      Net Weight 525g
      Touchscreen without
      Signal Type/interface Type LVDS (2 ch, 8-bit) , 30 pins
      Voltage Supply +3.3 V
      Max. Ratings Storage Temp.: -30 ~ +80 (°C)
      Operating Temp.: -20 ~ +70 (°C)
      Package TIANMA Original package;
      14 pcs/ctn;
      size : 530(L) x 430(W) x 274(H) mm

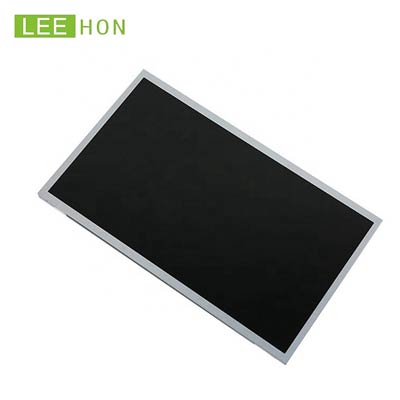

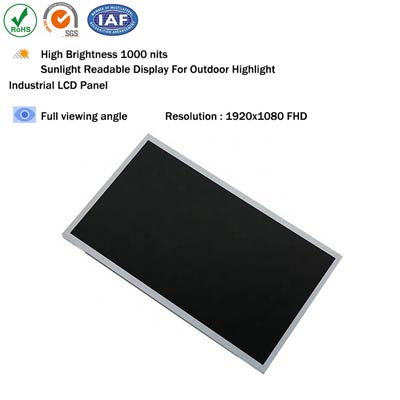

    • TIANMA 11.6 inch tft lcd panel P1160FHF1MA01 with 1920(RGB)x1080 FHD resolution, brightness 1000 cd/m²(High Brightness). This lcd display's working temperature is -20 ~ +70 (°C) and it's storage temperature is -30 ~ +80 (°C). Based on it's white LED backlight. This model is recommended for industrial and Outdoor Highlight use.
      Matched resistive touch and capacitive touch available. Also we have matched HDMI driver board and LVDS cables.
      Industrial 11.6 inch 1920*1080 Full HD LCD Panel Original TIANMA TFT IPS Display For Outdoor P1160FHF1MA01 with 1000 nits and 30 pins LVDS.


      Hangzhou LEEHON Technology is one of the main agents of AUO/BOE / Kyocera/ Innolux TFT- LCD module in China
      mainland, founded in 2009, the products vary from 2.5 to 43 inches, which include GD (Industrial grade), AV (car class),
      PID (General Application) and other related products etc.,superior quality and competitive price, our products are sold
      very well in North&South America, Western Europe and Southeast Asia.
      We can supply total set of display solution:
      TFT LCD screen + touch screen + controller board + cables + open frame.
      stock for sale
      long-time supply
      no MOQ
      in fulll range
