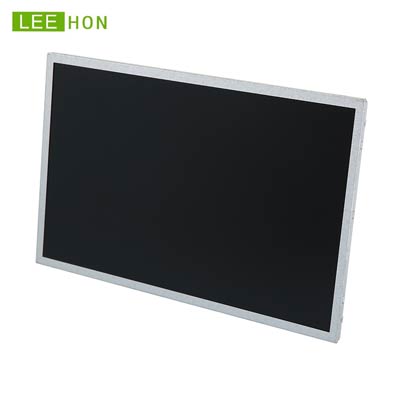

| Manufacturer | TIANMA |
| Model Name | TM121JDGP30 |
| Screen Size | 12.1 inch |
| Pixel Number | 1280(RGB)×800 , WXGA |
| Active Area(mm) | 261.1 x 163.2 (H×V) |
| Outline(mm） | 278.0 x 184.0 x 9.9 (H×V×D) |
| Pixel Pitch(mm) | 0.204 x 0.204 (H×V) |
| Treatment | AG |
| Luminance | 450 cd/m² (Typ.) |
| Contrast Ratio | 1000 : 1 (Typ.) (TM) |
| Viewing Angle | 85/85/85/85 (CR≥10) Left / Right/UP /Down |
| Response time | 16/16 (Typ.)(Tr/Td) ms |
| Display Mode | SFT , Normally black , Transmissive |
| Color Depth | 262K/16.7M , 72% NTSC |
| Backlight | WLED , 50K hours , with LED Driver |
| Net Weight | 445g |
| Touchscreen | without |
| Signal Type/interface Type | LVDS (1 ch, 6/8-bit) , 30 pins |
| Voltage Supply | +3.3 V |
| Max. Ratings |
Storage Temp.: -30 ~ +80 (°C) Operating Temp.: -20 ~ +70 (°C) |
| Package |
TIANMA Original package; 15 pcs/ctn; weight : 9.97Kgs; size : 530(L) x 430(W) x 274(H) mm |
