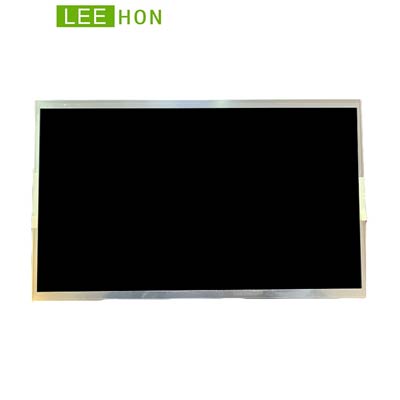

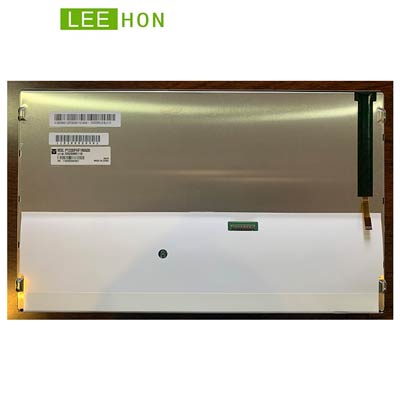

| Manufacturer | TIANMA |
| Model Name | P1330FHF1MA00 |
| Screen Size | 13.3 inch |
| Pixel Number | 1920(RGB)×1080 , FHD |
| Active Area(mm) |
293.76 x 165.24 (H×V)
|
| Outline(mm） |
308.00 x 186 x 9.20 (H×V×D)
|
|
Pixel Pitch(mm)
|
0.153 x 0.153 (H×V)
|
| Treatment | HC |
| Luminance | 1000 cd/m² (Typ.) |
| Contrast Ratio | 1000 : 1 (Typ.) (TM) |
| Viewing Angle | 88/88/88/88 (Typ.) |
| Response | 25 (Typ.)(Tr/Td) ms |
| Work Mode | SFT , Normally black, Transmissive |
| Color Depth | 16.7M , 72% NTSC |
| Backlight | WLED , 50K hours,without driver |
| Net Weight | 560g |
| Touchscreen | without |
| Signal Type/interface Type | LVDS (2 ch, 8-bit) , 40 pins |
| Voltage Supply | 3.3V |
| Max. Ratings |
Storage Temp.: -30 ~ +80 (°C) Operating Temp.: -20 ~ +70 (°C) |
| Package |
TIANMA Original package; 10 pcs/ctn; weight : 7.38Kgs; size : 360(L)mm x 335(W)mm x 253(H)mm |
