P1330FHF1ME10

Your location： Home
  • Products
  • TIANMA
  • 13.3
    • Module No：P1330FHF1ME10
    • Brand：TIANMA
    • Size：13.3 inch
    • Resolution：1920(RGB)×1080 , FHD
    • Brightness：350 cd/m²
    • Viewing angle：88/88/88/88 (Typ.)
    • Interface：eDP (2 Lanes) , eDP1.2 , 30 pins
    • CR：1000:1
    • Operating Temp.: -20 ~ +70 (°C)
    • Parameters
    • Description
    • Manufacturer  TIANMA
      Model Name P1330FHF1ME10
      Screen Size 13.3 inch
      Pixel Number 1920(RGB)×1080 , FHD
      Active Area(mm) 293.76 x 165.24 (H×V)
      Outline(mm） 305.35 x 178.56 x 3.7 (H×V×D)
      Pixel Pitch(mm)
      		 0.153 x 0.153 (H×V)
      Treatment
      Anti-Glare
      Luminance 350 cd/m² (Typ.)
      Contrast Ratio 1000 : 1 (Typ.) (TM)
      Viewing Angle 88/88/88/88(CR≥10) Left / Right/UP /Down
      Response 25 (Typ.)(Tr/Td) ms
      Work Mode SFT , Normally black, Transmissive
      Color Depth 16.7M , 72% NTSC
      Backlight WLED , 30K hours, with LED Driver
      Net Weight 383g
      Touchscreen without
      Signal Type/interface Type eDP (2 Lanes) , eDP1.2 , 30 pins
      Voltage Supply 3.3V
      Max. Ratings Storage Temp.: -30 ~ +80 (°C)
      Operating Temp.: -20 ~ +70 (°C)
      Package TIANMA Original Package;
      10 pcs/ctn;
      weight : 5.3Kgs;
      size : 447(L)mm x 415(W)mm x 328(H)mm

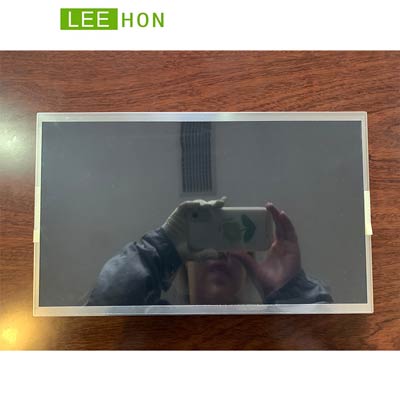

    • TIANMA 13.3 inch tft lcd ips panel P1330FHF1ME10 with 1920(RGB)×1080 FHD resolution , brightness 350 cd/m². This lcd display is working temperature is -20 ~ +70 (°C) and its storage temperature is  -30 ~ +80 (°C). Based on its white LED backlight. This model is recommended for industrial use.
      Matched Resistive touch and Capacitive touch available.also we have matched HDMI driver board and eDP cables.
      High-quality A Grade 13.3 Inch 1920x1080 FHD TIANMA TFT LCD Panel IPS Screen For Industry P1330FHF1ME10 with 350 Nits, eDP Cables And Controller Board.


      Hangzhou LEEHON Technology is one of the main agents of AUO/BOE / Kyocera/ Innolux TFT- LCD module in China mainland, founded in 2009, the products vary from 2.5 to 43 inches, which include GD (Industrial grade), AV (car class), PID (General Application) and other related products etc.,superior quality and competitive price, our products are sold very well in North&South America, Western Europe and Southeast Asia.
      We can supply total set of display solution:
      TFT LCD screen + touch screen + controller board + cables + open frame.
      stock for sale
      long-time supply
      no MOQ
      in fulll range
    Customization solutions
