TM150TDSG71

Your location: Home > Products > TIANMA > 15.0 >
  • Module No:TM150TDSG71
  • Brand:TIANMA
  • Size:15 inch
  • Resolution:1024(RGB)×768 , XGA
  • Brightness:450 cd/m²
  • Viewing angle:80/80/80/80 (Typ.)
  • Interface:LVDS (1 ch, 6/8-bit) , 20 pins
  • CR:800:1
  • Operating Temp.: -20 ~ +70 (°C)
  • Parameters
  • Description
  • Manufacturer  TIANMA
    Model Name TM150TDSG71
    Screen Size 15 inch
    Pixel Number 1024(RGB)×768 , XGA
    Active Area(mm) 304.128 x 228.096 (H×V)
    Outline(mm) 328.5 x 253.5 x 11.8 (H×V×D)
    Pixel pitch(mm)
    0.297 x 0.297 (H×V)
    Treatment
    Anti Glare
    Luminance 450 cd/m² (Typ.)
    Contrast Ratio 800 : 1 (Typ.) (TM)
    Viewing Angle 80/80/80/80(CR≥10) Left / Right/UP /Down
    Response 8 (Typ.)(Tr/Td) ms
    Work Mode TN , Normally white, Transmissive
    Color Depth 262K/16.7M , 62% NTSC
    Backlight WLED , 50K hours, with LED Driver
    Net Weight 1.00Kgs
    Touchscreen without
    Signal Type/interface Type LVDS (1 ch, 6/8-bit) , 20 pins
    Voltage Supply 3.3V
    Max. Ratings Storage Temp.: -30 ~ +80 (°C)
    Operating Temp.: -20 ~ +70 (°C)
    Package TIANMA Original Package;
    10 pcs/ctn;
    weight : 12.1 Kgs
    size : 438(L)mm x 402(W)mm x 464(H)mm

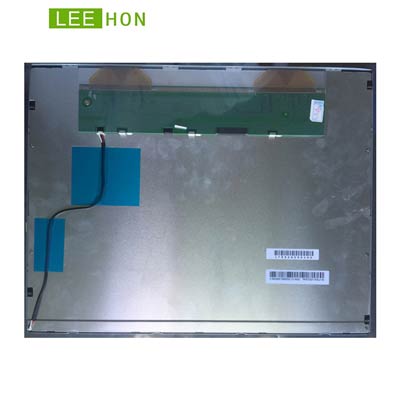

  • TIANMA 15 inch tft lcd panel TM150TDSG71 with 1024(RGB)×768 XGA resolution , brightness 450 cd/m². This lcd display is working temperature is -20 ~ +70 (°C) and its storage temperature is  -30 ~ +80 (°C). Based on its white LED backlight. This model is recommended for industrial use.
    Matched Resistive touch and Capacitive touch available.also we have matched HDMI driver board and LVDS cables.
    Original A Grade 15 inch 1024x768 XGA TIANMA TFT LCD Panel Screen For Industry TM150TDSG71 with 450 Nits, 20 Pin LVDS Cables And Controller Board.



    Hangzhou LEEHON Technology is one of the main agents of AUO/BOE / Kyocera/ Innolux TFT- LCD module in China mainland, founded in 2009, the products vary from 2.5 to 43 inches, which include GD (Industrial grade), AV (car class), PID (General Application) and other related products etc.,superior quality and competitive price, our products are sold very well in North&South America, Western Europe and Southeast Asia.
    We can supply total set of display solution:
    TFT LCD screen + touch screen + controller board + cables + open frame.
    stock for sale
    long-time supply
    no MOQ
    in fulll range
