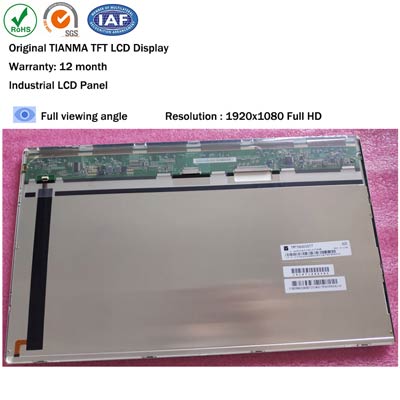

TM156VDSG17

Your location: Home > Products > TIANMA > 15.6" >
  • TM156VDSG17
  • Module No:TM156VDSG17
  • Brand:TIANMA
  • Size:15.6 inch
  • Resolution:1920(RGB)×1080 , FHD
  • Brightness:400 cd/m²
  • Viewing angle:88/88/88/88 (Typ.)
  • Interface:LVDS (2 ch, 8-bit) , 30 pins
  • CR:1000:1
  • Operating Temp.: -20 ~ +70 (°C)
  • Parameters
  • Description
  • Manufacturer  TIANMA
    Model Name TM156VDSG17
    Screen Size 15.6 inch
    Pixel Number 1920(RGB)×1080 , FHD
    Active Area(mm) 344.16  × 193.59 (H×V)
    Outline(mm) 363.8  ×215.9 × 6.3 (H×V×D)
    Pixel Pitch(mm) 0.17925  × 0.17925 (H×V)
    Treatment Anti-glare
    Luminance 400 cd/m² (Typ.)
    Contrast Ratio 1000 : 1 (Typ.) (TM)
    Viewing Angle 88/88/88/88 (CR≥10) Left / Right/UP /Down
    Response time 25 (Typ.)(Tr/Td) ms
    Display Mode SFT  , Normally black , Transmissive
    Color Depth 16.7M , 72% NTSC
    Backlight WLED , 50K hours , with LED Driver
    Net Weight 610g (Typ.)
    Touchscreen without
    Signal Type/interface Type LVDS (2 ch, 8-bit) , 30 pins
    Voltage Supply +3.3 V
    Max. Ratings Storage Temp.: -20 ~ +7(°C)
    Operating Temp.: -20 ~ +70 (°C)
    Package Tianma Original package

  • TIANMA 15.6 inch tft lcd ips panel TM156VDSG17 with 1920(RGB)×1080 Full HD resolution, brightness 400 cd/m². This lcd display's working temperature is -20 ~ +70 (°C) and it's storage temperature is -20 ~ +70 (°C). Based on it's white LED backlight. This model is recommended for industrial use.
    Matched resistive touch and capacitive touch available. Also we have matched HDMI driver board and LVDS cables.
    15.6 Inch 1920*1080 Full HD LCD Panel Original TIANMA TFT IPS Display TM156VDG17 support 400nits and LVDS interface.



    Hangzhou LEEHON Technology is one of the main agents of AUO/BOE / Kyocera/ Innolux TFT- LCD module in China
    mainland, founded in 2009, the products vary from 2.5 to 43 inches, which include GD (Industrial grade), AV (car class),
    PID (General Application) and other related products etc.,superior quality and competitive price, our products are sold
    very well in North&South America, Western Europe and Southeast Asia.

    We can supply total set of display solution:
    TFT LCD screen + touch screen + controller board + cables + open frame.
    stock for sale
    long-time supply
    no MOQ
    in fulll range
