BA104S01-100

Your location: Home > Products > BOE > 10.4" >

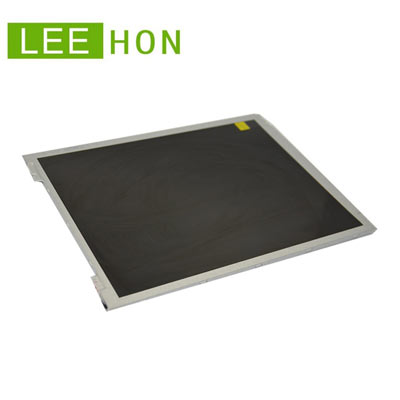

  • BA104S01-100
  • Module No:BA104S01-100
  • Brand:BOE
  • Size:10.4 inch
  • Resolution:800*600
  • Brightness:400 cd/m²
  • Viewing angle:70/70/60/70
  • Interface:LVDS (1 ch, 6/8-bit) , 20 pins
  • CR:400:1
  • Operating Temp.: -20~70(℃)
  • Parameters
  • Description
  • Manufacturer 19 BOE
    Model Name BA104S01-100
    Screen Size 10.4 inch
    Pixel Number 800(RGB)*600
    Active Area(mm)
    211.20(H) * 158.40(V)
    Outline(mm)
    236.00(H) *176.90(V) * 5.60(D)
    Bezel Area(mm) 211.2 * 158.4 mm (H*V)
    Luminance 400 cd/m² (Typ.)
    Contrast Ratio 400 : 1 (Typ.) (TM)
    Viewing Angle 70/70/60/70
    Response 25 ms
    Work Mode
    Transmission mode Normally White
    Color Depth 262K/16.7M , 50% NTSC
    Backlight 30K hours,without LED Driver
    Net Weight 288g
    Touchscreen without
    Signal Type/interface Type LVDS (1 ch, 6/8-bit)  , 20 pins
    Max. Ratings Storage Temp.: -30 ~ 80 °C
    Operating Temp.: -20 ~70 °C
    Package  BOE original package;As requirement

  • BOE 10.4 inch BA104S01-100 is a standard brightness TFT panel with 400nits,
    Its working temperature is - 20 ~ 70 ° C and its storage temperature is - 30 ~ 80°C.Based on its white LED backlight, the service life is more than 30000 hours.This lcd model is recommended for industrial and medical imaging.There is ready VGA/HDMI/AV/DP controller board and touch panels with optical bonding.

    Hangzhou LEEHON Technology is one of the main agents of AUO/BOE / Kyocera/ Innolux TFT- LCD module in China mainland, founded in 2009, the products vary from 2.5 to 43 inches, which include GD (Industrial grade), AV (car class), PID (General Application) and other related products etc.,superior quality and competitive price, our products are sold very well in North&South America, Western Europe and Southeast Asia.
    We can supply total set of display solution:
    TFT LCD screen + touch screen + controller board + cables + open frame.
    stock for sale
    long-time supply
    no MOQ
    in fulll range
