| Manufacturer | BOE |

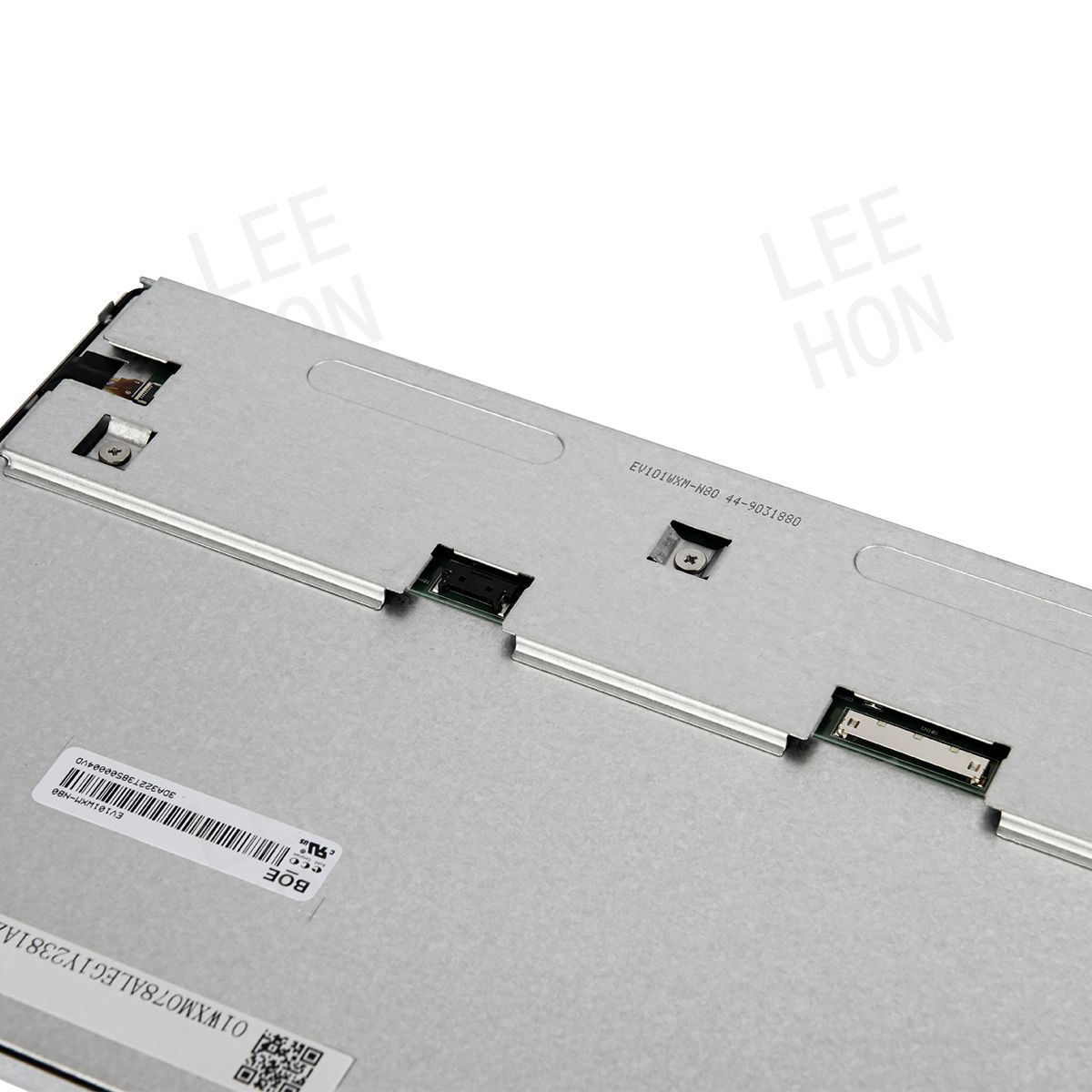

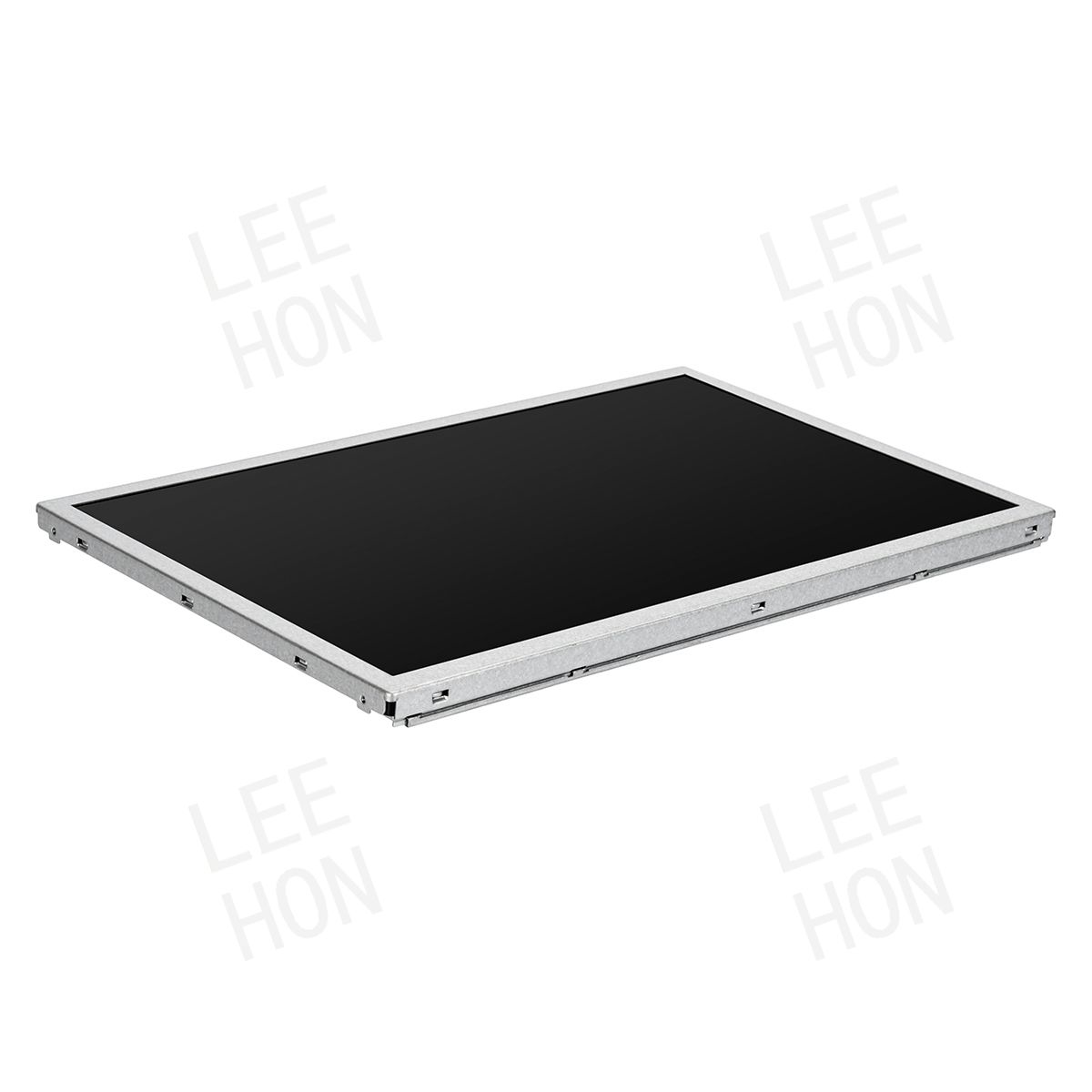

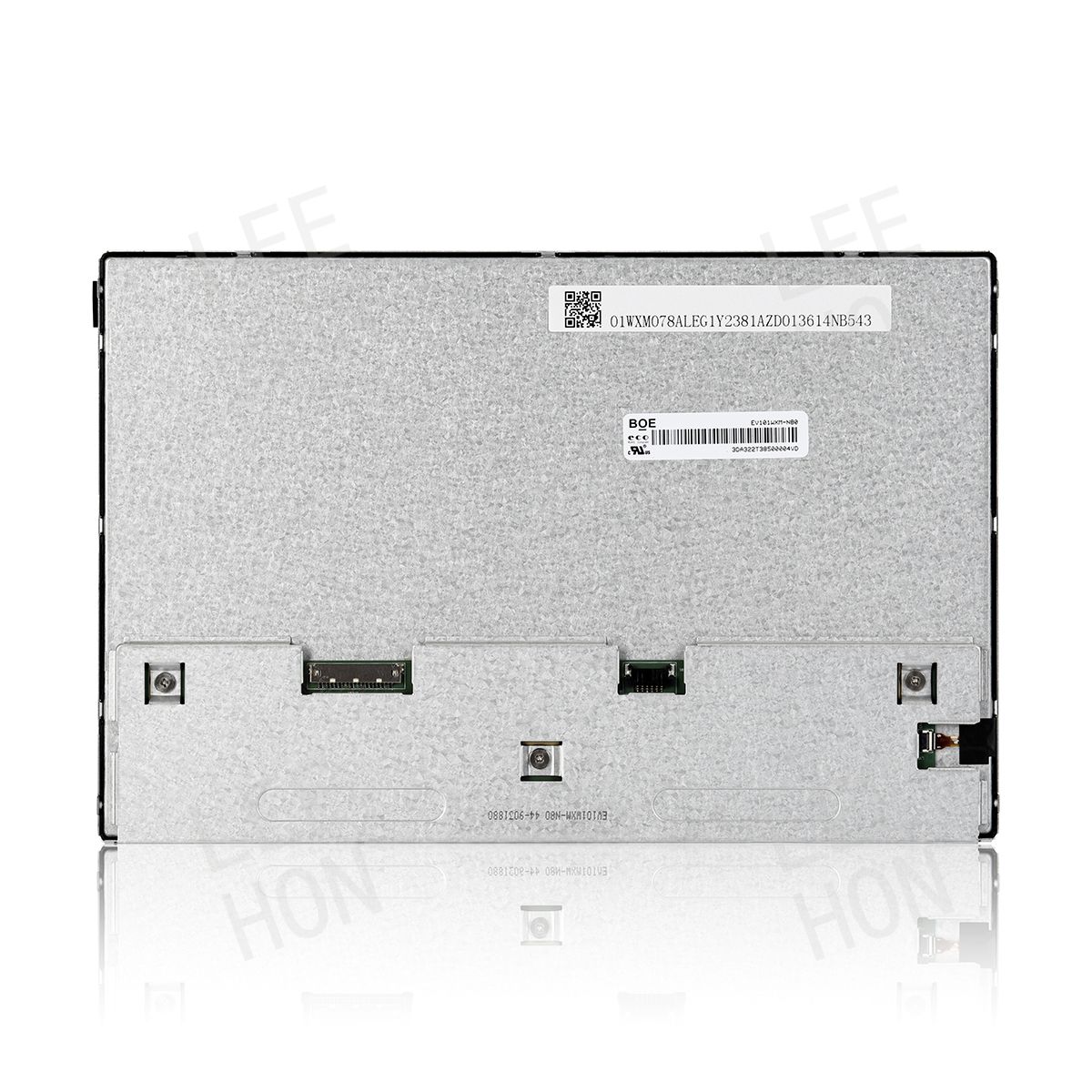

| Model Name | EV101WXM-N81 |
| Screen Size | 10.1 inch |
| Pixel Number | 1280(RGB)×800 , WXGA |
| Active Area(mm) | 216.96 x 135.6 (H×V) |

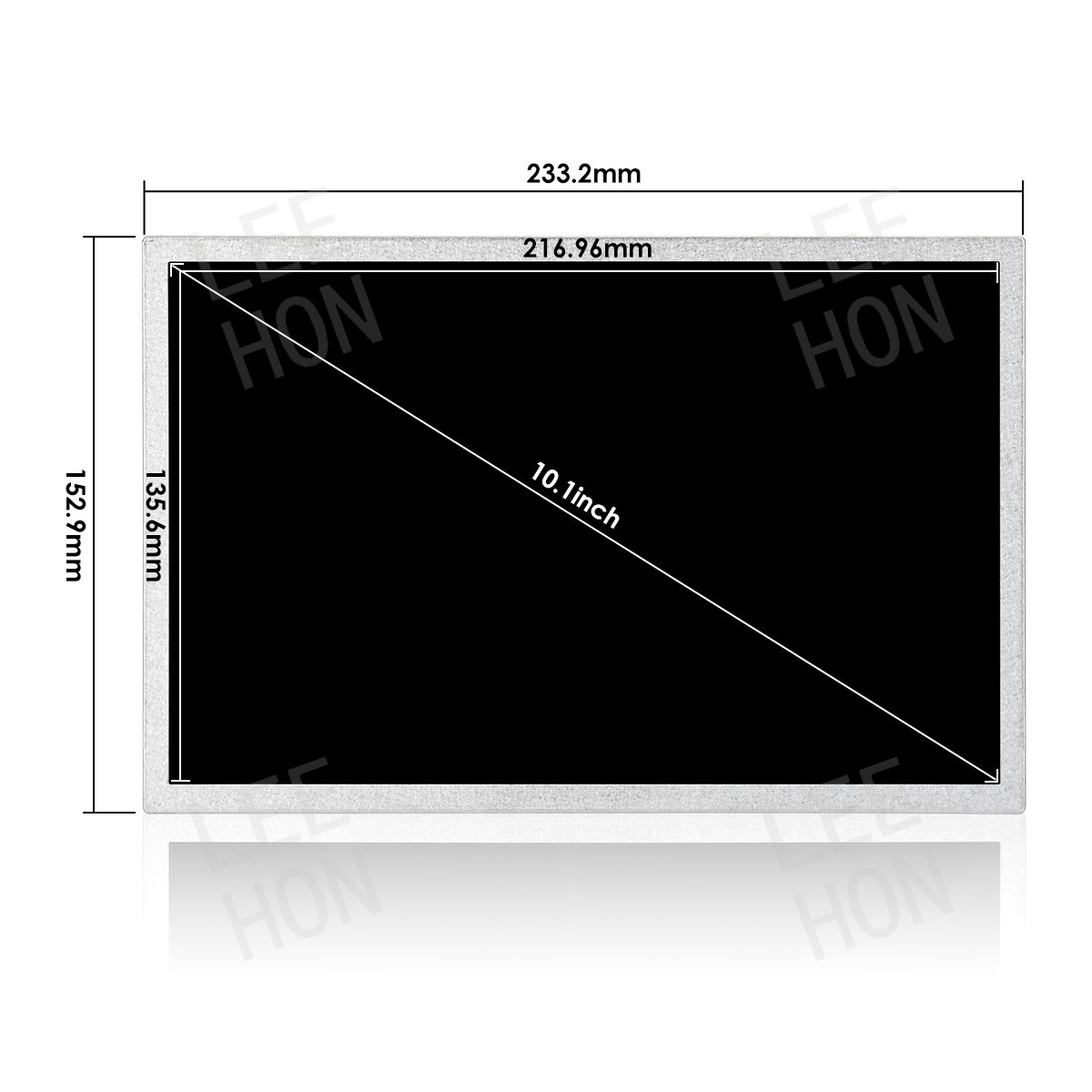

| Outline(mm） | 233.2 x 152.9 x 6.7 (H×V×D) |
| Pixel Pitch(mm) | 56.5 x 169.5 (H×V) |
| Treatment | (Haze 25%)，Hard coating (3H) |
| Luminance | 500 cd/m² (Typ.) |
| Contrast Ratio | 900 : 1 (Typ.) (TM) |
| Viewing Angle | 85/85/85/85 (CR≥10) Left / Right/UP /Down |
| Response time | 30 (Typ.)(Tr/Td) ms |
| Display Mode | ADS , Normally black , Transmissive |
| Color Depth | 16.7M , 52% NTSC |
| Backlight | WLED , 50K hours , with LED Driver |
| Net Weight | 505g |
| Touchscreen | without |

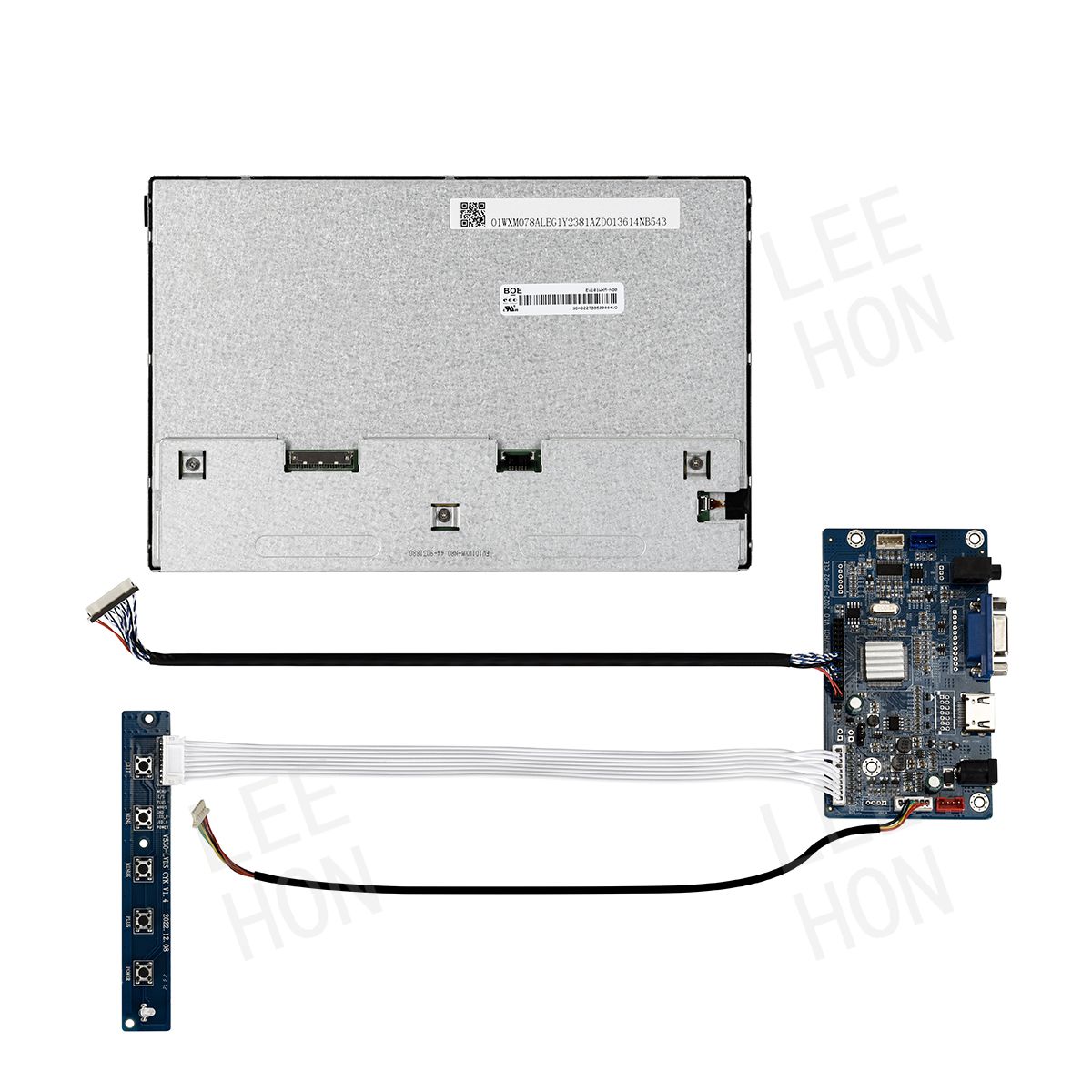

| Signal Type/interface Type | LVDS (1 ch, 8-bit) , 20 pins |
| Voltage Supply | +3.3 V |
| Max. Ratings |
Storage Temp.: -30 ~ +80 (°C) Operating Temp.: -20 ~ +70 (°C) |
| Package |
BOE Original package; 22 pcs/box; size : 500(W) x 400(D) x 290(H)mm |
