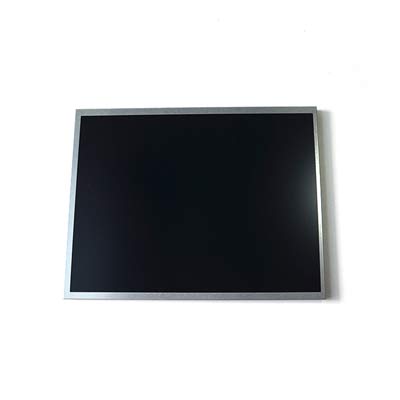

BA121S01-200

Your location: Home > Products > BOE > 12.1" >
  • Module No:BA121S01-200
  • Brand:BOE
  • Size:12.1 inch
  • Resolution:800*600
  • Brightness:430 cd/m²
  • Viewing angle:80/80/65/75
  • Interface:LVDS (1 ch, 6/8-bit) , Connector , 20 pins
  • CR:800:1
  • Operating Temp.: -20~70(℃)
  • Parameters
  • Description
  • Manufacturer 19 BOE
    Model Name BA121S01-200
    Screen Size 12.1 inch
    Pixel Number 800(RGB)*600, SVGA
    Active Area(mm)
    246(H)*184.5(V)
    Outline(mm)
    279(H)*209(V)*9.0(typ)
    Bezel Area(mm) 246(h)*184.5(v)mm
    Luminance 400 cd/m² (Typ.)
    Contrast Ratio 800 : 1 (Typ.)
    Viewing Angle 80/80/65/75
    Response 30 (Typ.) ms
    Work Mode TN, Normally white, Transmissive mode
    Color Depth 262K/16.7M , 50% NTSC
    Backlight 30K hours,with LED Driver
    Net Weight 500g
    Touchscreen without
    Signal Type/interface Type LVDS (1 ch, 6/8-bit) , 20 pins
    Voltage Supply 3.3V
    Max. Ratings Storage Temp.: -30 ~ 80 °C
    Operating Temp.: -20 ~70 °C
    Package BOE original package;As requirement
    Original package from original factory, with well packed cartons, and protect foams
    8 pcs / box
    BOE
  • BOE 12.1 inch Panel BA121S01-200 with resolution 800*600 briughtness 400 nits,high contrast 800:1 and long lifetime 30,000 hours.White LED backlight, including LED driver.This lcd model is used in industrial products.
    Matched Resistive touch and Capacitive touch available.also we have matched HDMI driver board and LVDS cables.


    Hangzhou LEEHON Technology is one of the main agents of AUO/BOE / Kyocera/ Innolux TFT- LCD module in China mainland, founded in 2009, the products vary from 2.5 to 43 inches, which include GD (Industrial grade), AV (car class), PID (General Application) and other related products etc.,superior quality and competitive price, our products are sold very well in North&South America, Western Europe and Southeast Asia.
    We can supply total set of display solution:
    TFT LCD screen + touch screen + controller board + cables + open frame.
