| Manufacturer 19 | BOE |
| Model Name | EV121WXM-N12 |
| Screen Size | 12.1 inch |
| Pixel Number | 1280(RGB)*800, WXGA |

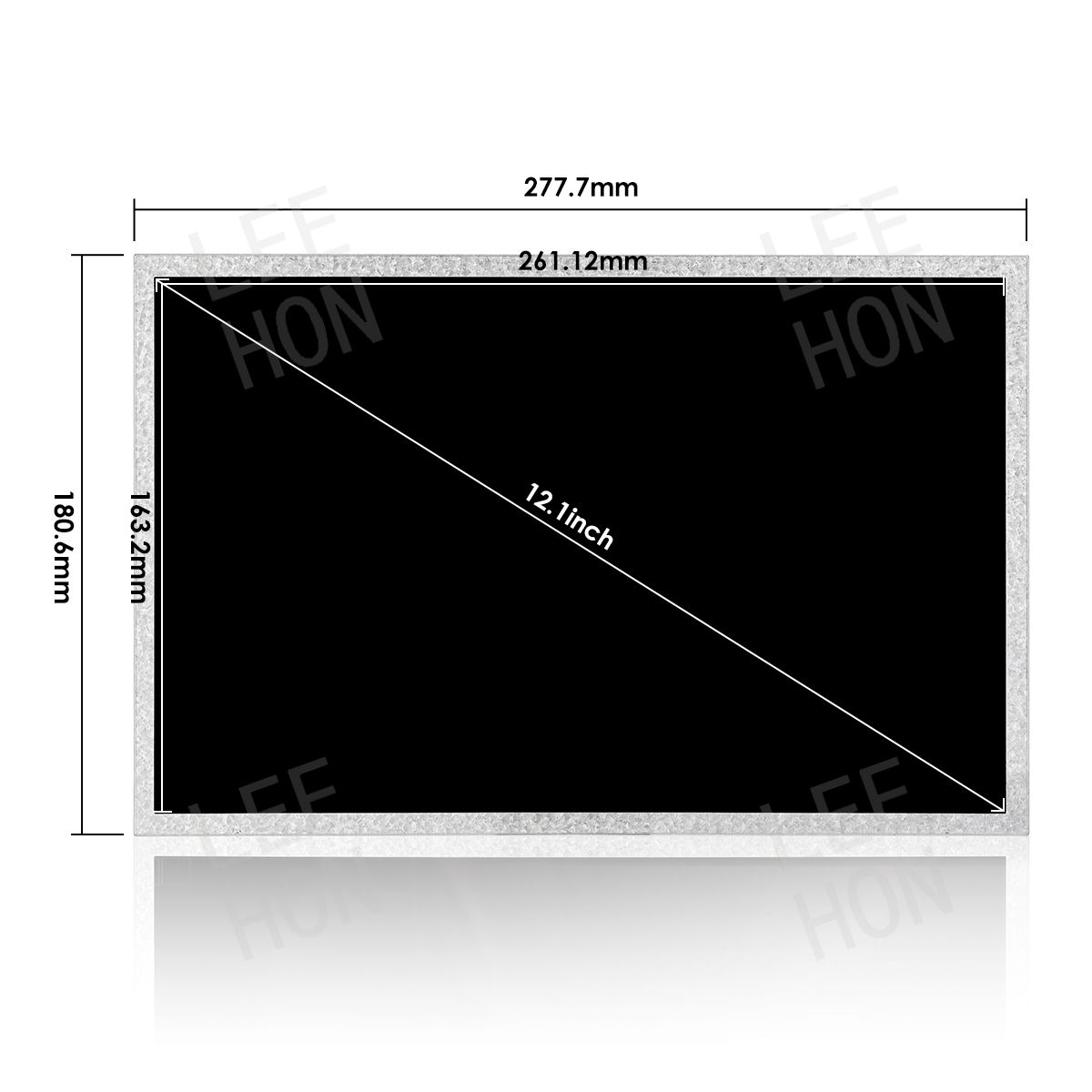

| Active Area(mm) |
261.12(H) * 163.20 (V)
|
| Outline(mm） |
277.7 (H) x* 180.6(V)
|
| Bezel Area(mm) | 261.12 * 163.2 mm (H*V) |
| Luminance | 500 cd/m² (Typ.) |
| Contrast Ratio | 1200 : 1 (Typ.) (TM) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Response | 35 (Typ.) ms |
| Work Mode | Normally black |
| Color Depth | 262K/16.7M , 50% NTSC |
| Backlight | 50K hours,with LED Driver |
| Net Weight | TBD |
| Touchscreen | without |
| Signal Type/interface Type | LVDS (1 ch, 6/8-bit) , 20 pins |
| Voltage Supply | 3.3V |
| Max. Ratings | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~70 °C |
| Package | BOE original package |
BOE 12.1 inch IPS Panel EV121WXM-N12 with resolution 1280*800 ,briughtness 500nits ,high contrast 1200:1 , long lifetime 50,000 hours and good color depth 16.7M.

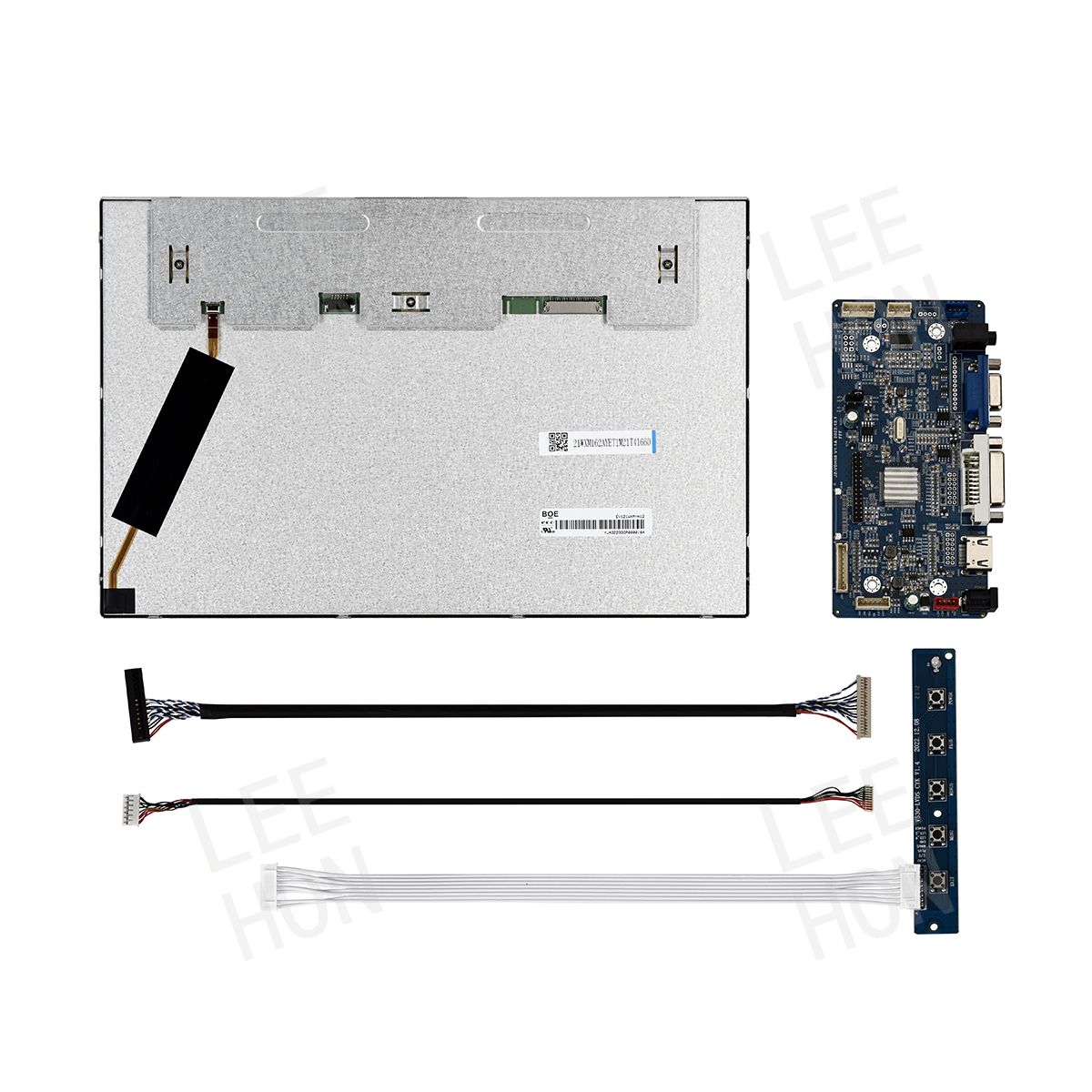

Matched Resistive touch and Capacitive touch available.also we have matched HDMI driver board and LVDS cables.
BOE 12.1 inch 1280*800 EV121WXM-N12 IPS screen tft lcd modules for medical imaging.
Hangzhou LEEHON Technology is one of the main agents of AUO/BOE / Kyocera/ Innolux TFT- LCD module in China mainland, founded in 2009, the products vary from 2.5 to 43 inches, which include GD (Industrial grade), AV (car class), PID (General Application) and other related products etc.,superior quality and competitive price, our products are sold very well in North&South America, Western Europe and Southeast Asia.
We can supply total set of display solution:
TFT LCD screen + touch screen + controller board + cables + open frame.
stock for sale
long-time supply
no MOQ
in fulll range
