  • Module No:EV121WXM-N10
  • Brand:BOE
  • Size:12.1 inch
  • Resolution:1280*800
  • Brightness:400 cd/m2
  • Viewing angle:85/85/85/85
  • Interface:LVDS
  • CR:1200:1
  • Operating Temp.: -20 ~ 70 °C
  • Parameters
  • Description
  • Manufacturer BOE
    Model Name EV121WXM-N10
    Screen Size 12.1
    Pixel Number 1280x800
    Active Area(mm) 261.12x163.2(HxV)
    Outline(mm) 277.7x180.6x8.7(HxV)
    Bezel Area(mm) 269.12 x173(HxV)
    Luminance 400 cd/m² (Typ.)
    Contrast Ratio 1200 : 1 (Typ.) (TM)
    Viewing Angle 85/85/85/85(CR≥10) Left / Right / Up / Down
    Response 25 (Typ.)(Tr+Td) ms
    Work Mode Normally black, Transmissive
    Color Depth 16.7M   48% (NTSC)
    Backlight 50K hours,With Driver
    Net Weight 556g
    operating frequency 60Hz
    Touchscreen without
    Signal Type/interface Type LVDS(1 ch, 8 bit) , 20 pins,connector
    Voltage Supply 3.3V (Typ.)
    Temperature Storage Temp.: -20 ~ 70 °C
    Operating Temp.: -30 ~ 80 °C
    Package 3pcs/inner box, 18pcs/box

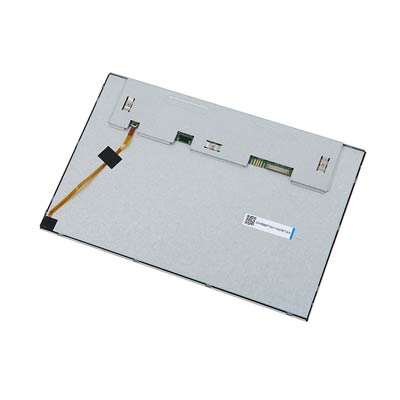

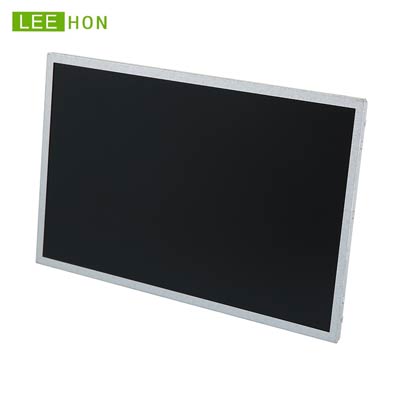

  • BOE 12.1 inch tft lcd panel EV121WXM-N10 with 1280*800 resolution , brightness 400 cd/m².This lcd display is working temperature is - 20~ 70 ° C and its storage temperature is - 30~ 80 (° C).Based on its white LED backlight.This model is recommended for industrial use and outdoor highlight.
    Matched Resistive touch and Capacitive touch available.also we have matched HDMI driver board and LVDS cables.
    BOE EV121WXM-N10 Nice Price IPS 1280x800 12.1 inch tft lcd screen with 50K hours LED Driver.

    Hangzhou LEEHON Technology is one of the main agents of AUO/BOE / Kyocera/ Innolux TFT- LCD module in China mainland, founded in 2009, the products vary from 2.5 to 43 inches, which include GD (Industrial grade), AV (car class), PID (General Application) and other related products etc.,superior quality and competitive price, our products are sold very well in North&South America, Western Europe and Southeast Asia.
    We can supply total set of display solution:
    TFT LCD screen + touch screen + controller board + cables + open frame.
    stock for sale
    long-time supply
    no MOQ
    in fulll range
