HM150X01-N01

Your location: Home > Products > BOE > 15.0" >
  • Module No:HM150X01-N01
  • Brand:BOE
  • Size:15 inch
  • Resolution:1024(RGB)×768 XGA
  • Brightness:350 cd/m2
  • Viewing angle:80/80/80/80
  • Interface:LVDS(1 ch, 6/8-bit),20 pins
  • CR:700:1
  • Operating Temp.: -20 ~ 70(°C)
  • Parameters
  • Description
  • Manufacturer BOE
    Model Name HM150X01-N01
    Screen Size 15 inch
    Pixel Number 1024(RGB)x768  XGA
    Active Area(mm) 304.128x228.096 (HxV)
    Outline(mm) 326.5x253.5x9.7(HxV)
    Bezel Area(mm) 307.3x231.3(HxV)
    Treatment Haze 25%,3H
    Luminance 350 cd/m² (Typ.)
    Contrast Ratio 700 : 1 (Typ.) (TM)
    Viewing Angle 80/80/80/80(CR≥10) Left / Right / Up / Down
    Response 8 (Typ.)(Tr+Td) ms
    Work Mode Normally white, Transmissive
    Color Depth 16.2M
    Backlight 50K hours,With Driver
    Net Weight 850g (Typ.)
    operating frequency 60Hz
    Touchscreen without
    Signal Type/interface Type LVDS(1 ch, 6-8 bit) , 20 pins,connector
    Voltage Supply 3.3V (Typ.)
    Temperature Storage Temp.: -20 ~ 70 °C
    Operating Temp.: -20 ~ 70 °C
    Package As request
    BOE
  • BOE 15 inch tft lcd panel with 1024x768 resolution and wide view angle ,long life time 50,000 hours,suitable for general industrial applitacions like ATM, Kiosk, HMI.Matched touchscreen for your options.
    Stable supply in 5 year, quality warranty in 12 months after ship date ,the cheapest lcd in 15 inch.

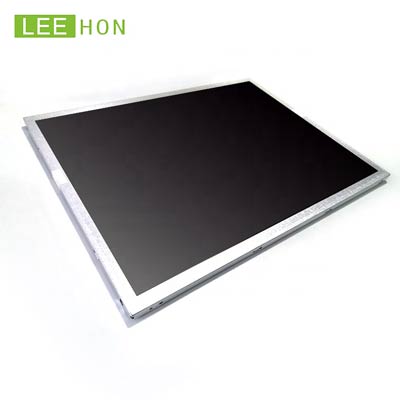

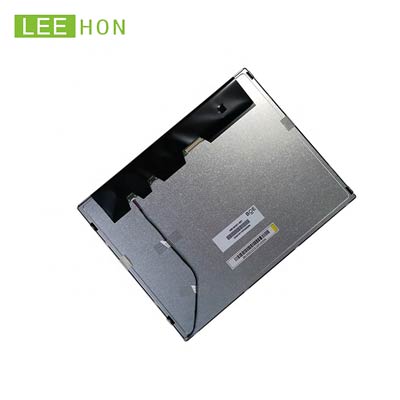

    Original BOE 15 inch TFT-LCD HM150X01-N01 1024*768 XGA, interface LVDS 20 pins lcd panel for Industry.


    Hangzhou LEEHON Technology is one of the main agents of AUO/BOE / Kyocera/ Innolux TFT- LCD module in China mainland, founded in 2009, the products vary from 2.5 to 43 inches, which include GD (Industrial grade), AV (car class), PID (General Application) and other related products etc.,superior quality and competitive price, our products are sold very well in North&South America, Western Europe and Southeast Asia.
    We can supply total set of display solution:
    TFT LCD screen + touch screen + controller board + cables + open frame.
    stock for sale
    long-time supply
    no MOQ
    in fulll range
