EV156FHM-N11

Your location: Home > Products > BOE > 15.6" >
  • Module No:EV156FHM-N11
  • Brand:BOE
  • Size:15.6 inch
  • Resolution:1920(RGB)×1080 , FHD
  • Brightness:500 cd/m²
  • Viewing angle:89/89/89/89(typ.)
  • Interface:LVDS (2 ch, 8-bit) , 40 pins
  • CR:800:1
  • Operating Temp.: 0 ~ +70 (℃)
  • Parameters
  • Description
  • Manufacturer  BOE
    Model Name EV156FHM-N11
    Screen Size 15.6 inch
    Pixel Number 1920(RGB)×1080 , FHD
    Active Area(mm)
    344.16(H) x 193.59(V)

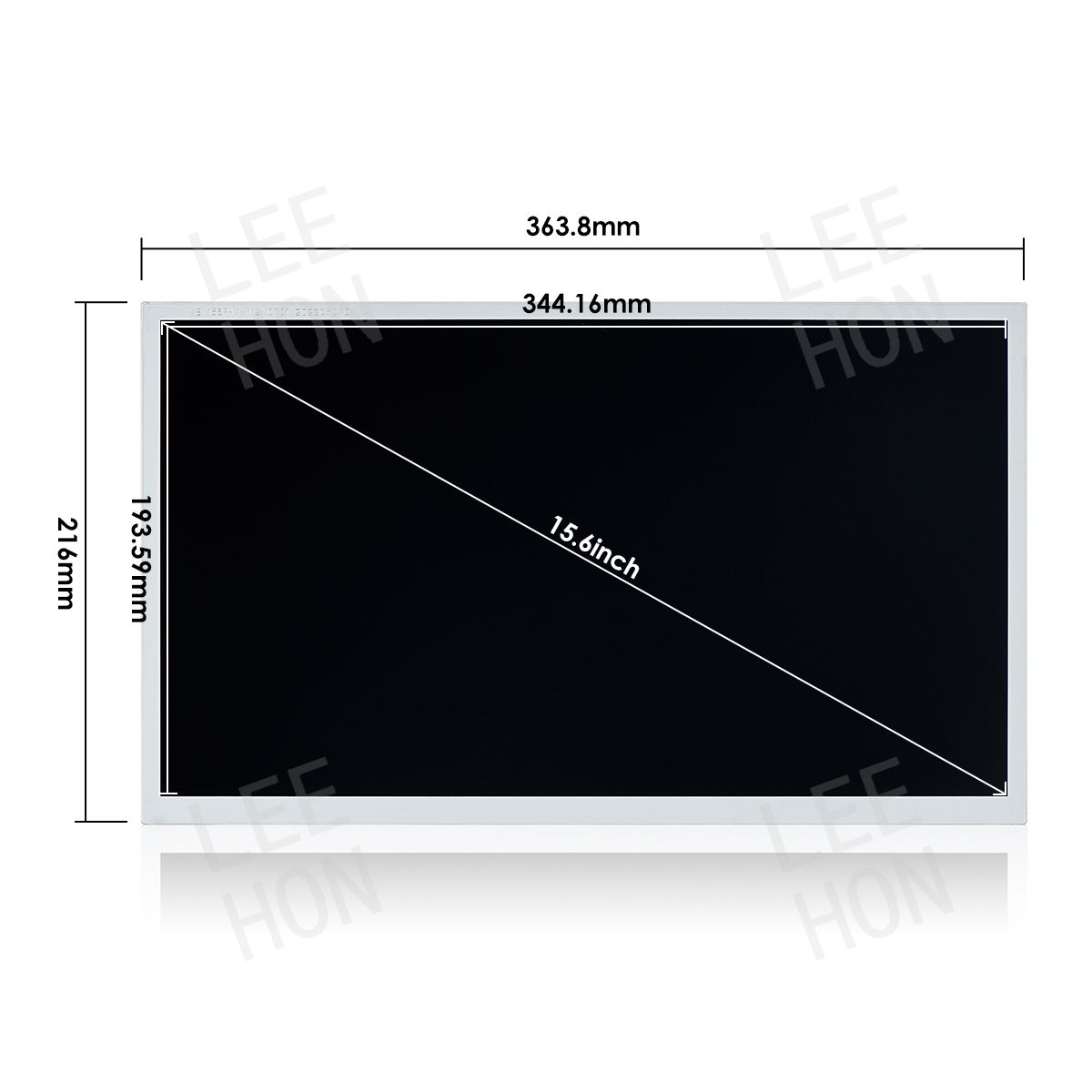

    Outline(mm)
    363.8(H) x 216(V) x 9.6(Typ)
    Bezel Area(mm) 344.16(h) × 193.59(v)
    Luminance 500 cd/m² (Typ.)
    Contrast Ratio 1200 : 1 (Typ.) (TM)
    Viewing Angle
    89/89/89/89 (typ.)
    Response 25 (Typ.) ms
    Display Mode ADS , Normally black
    Color Depth 16.7M , 78% NTSC
    Backlight WLED , 50K hours , with LED Driver
    Net Weight 850g
    Touchscreen without
    Signal Type/interface Type LVDS (2 ch, 8-bit) , 40 pins
    Max. Ratings Storage Temp.: -20 ~ +80 (°C)
    Operating Temp.:0 ~ +70 (°C)
    Package BOE Original package;
    15 pcs / box;
    size : 470(W) x 360(D) x 318(H)mm
    EV156FHM-N11
    EV156FHM-N11
    EV156FHM-N11
    EV156FHM-N11
    EV156FHM-N11
    EV156FHM-N11

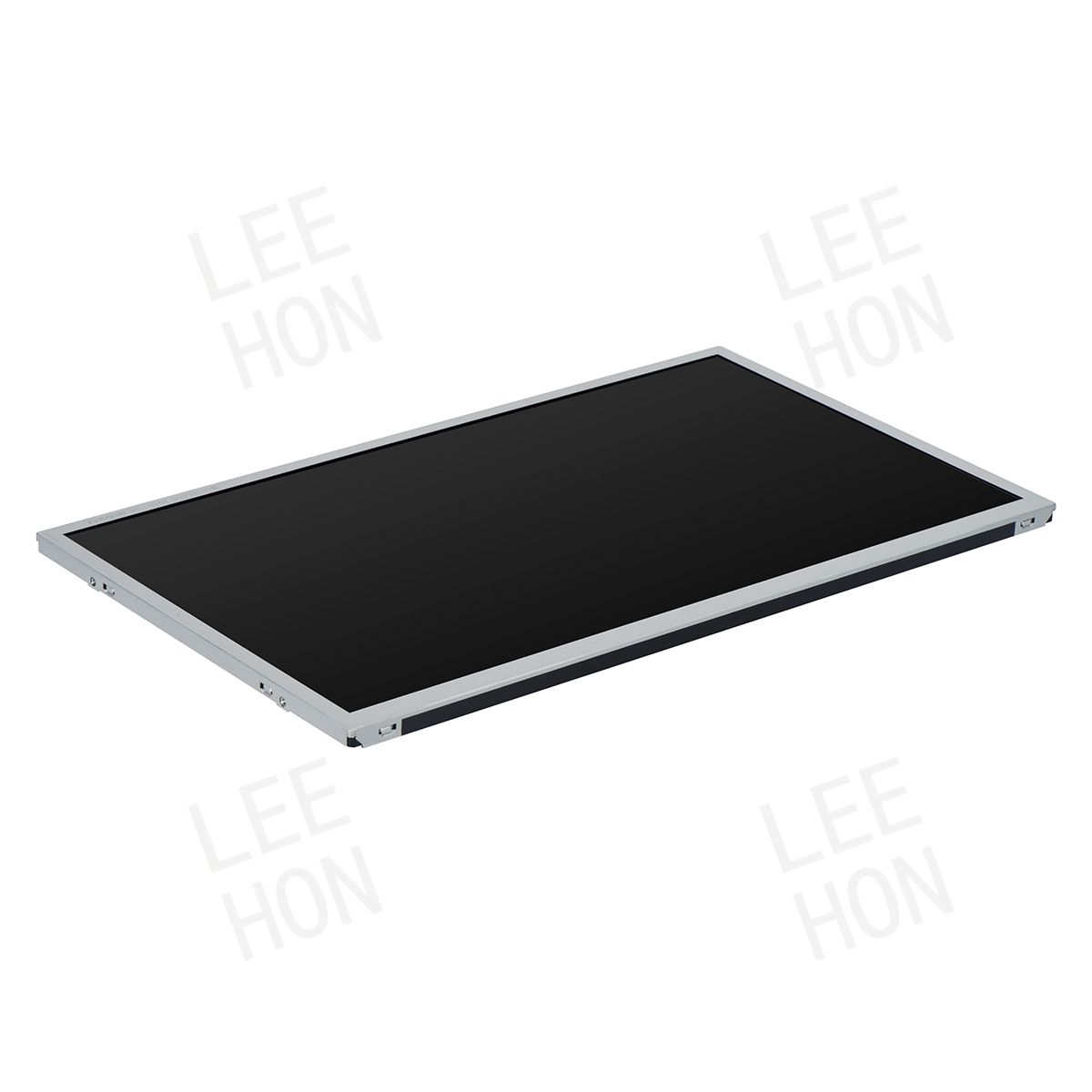

  • AUO 15.6 inch tft lcd ips panel EV156FHM-N11 with 1920(RGB)x1080 Full HD resolution, brightness 500 cd/m². This lcd display's working temperature is 0 ~ +70 (°C) and it's storage temperature is  -20 ~ +80 (°C). Based on it's white LED backlight. This model is recommended for industrial and medical imaging use.

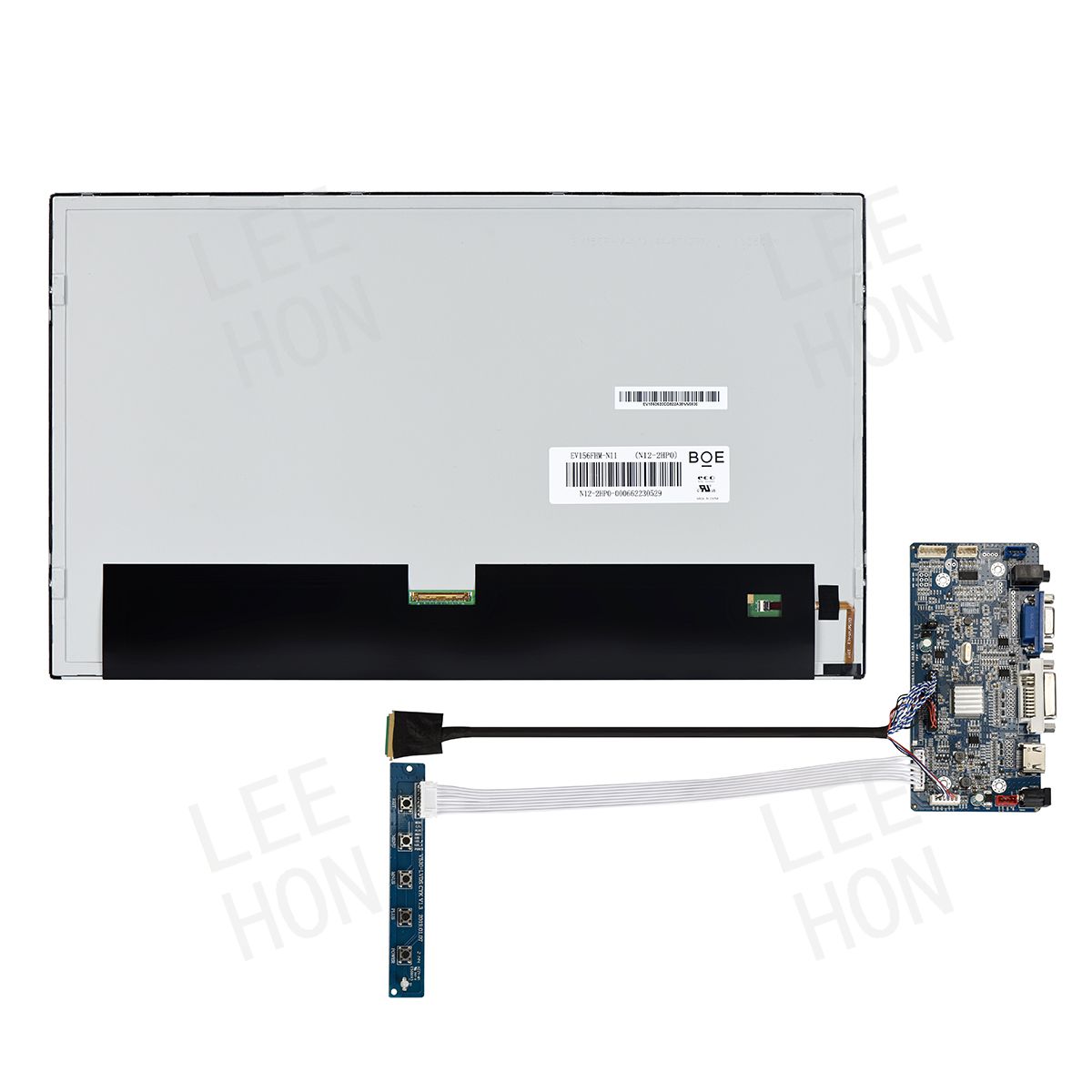

    Matched resistive touch and capacitive touch available. Also we have matched HDMI driver board and LVDS cables.
    Industrial 15.6 Inch 1920*1080 HD LCD Panel Original BOE 15.6" TFT LCD IPS Display For Medical imaging EV156FHM-N11 with 500nits and 40 pins LVDS.

    boe

    Hangzhou LEEHON Technology is one of the main agents of AUO/BOE / Kyocera/ Innolux TFT- LCD module in China
    mainland, founded in 2009, the products vary from 2.5 to 43 inches, which include GD (Industrial grade), AV (car class),
    PID (General Application) and other related products etc.,superior quality and competitive price, our products are sold
    very well in North&South America, Western Europe and Southeast Asia.

    We can supply total set of display solution:
    TFT LCD screen + touch screen + controller board + cables + open frame.
