| Manufacturer | BOE |

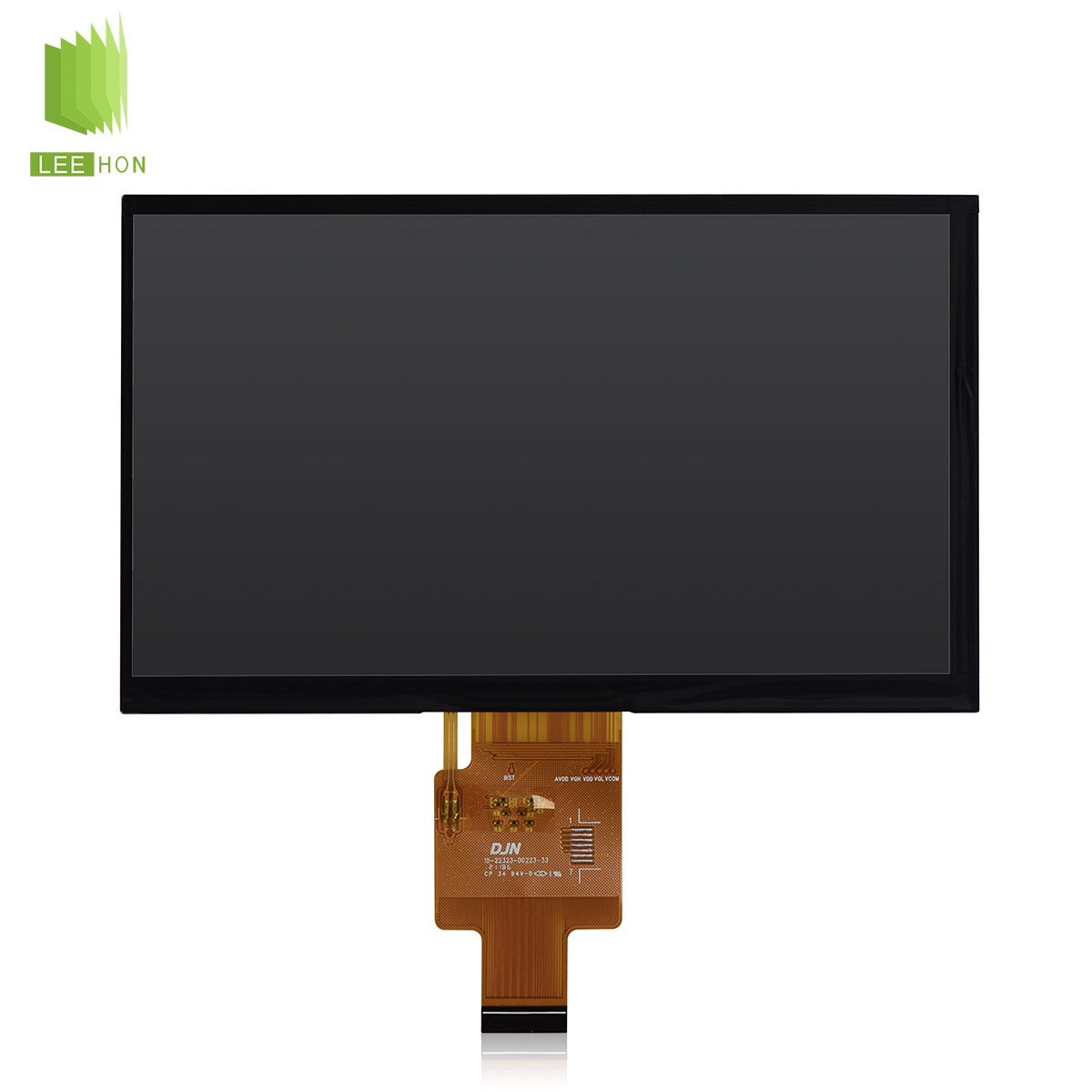

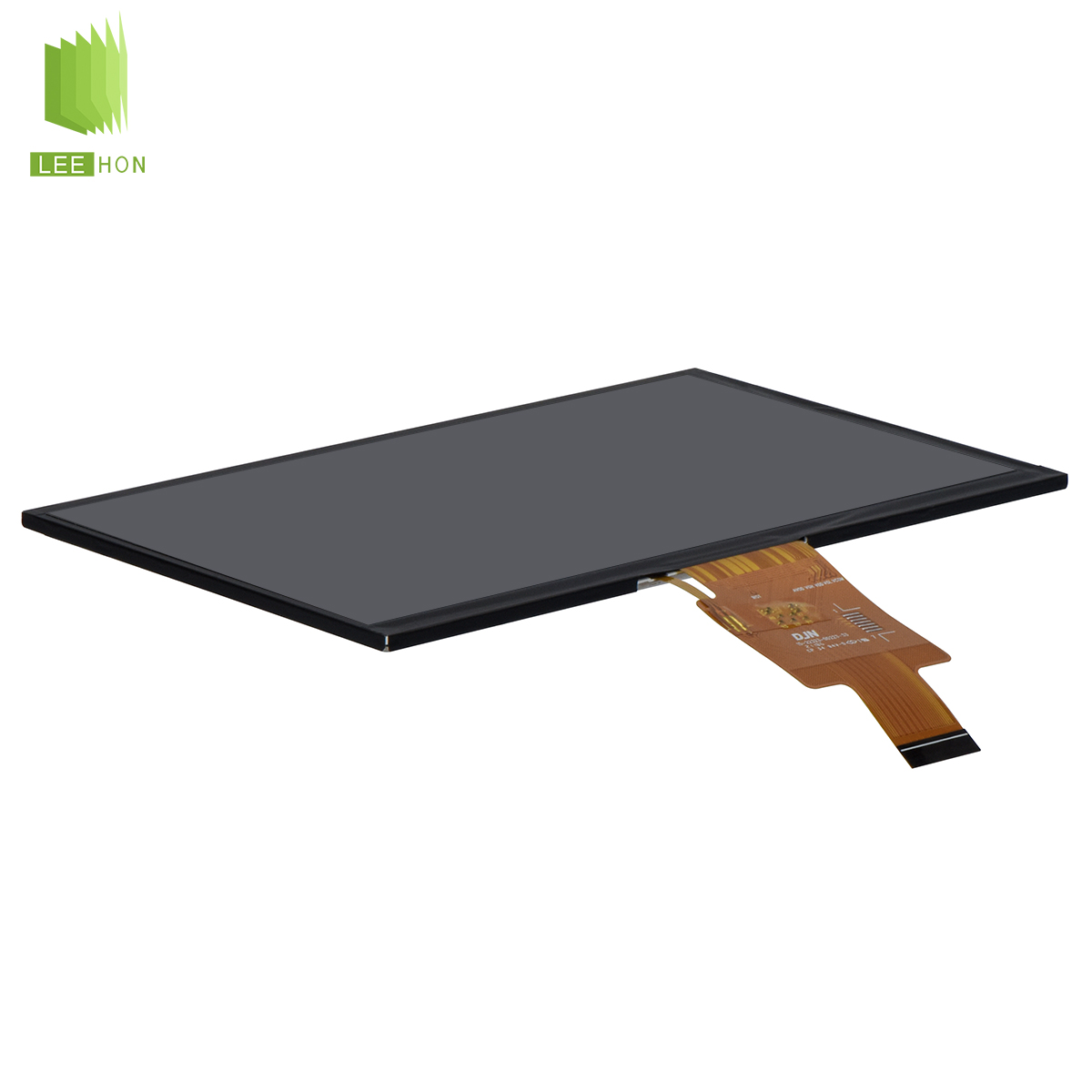

| Model Name | GV070WSM-N10 |
| Screen Size | 7 inch |
| Pixel Number | 1024(RGB)×600 , WSVGA |

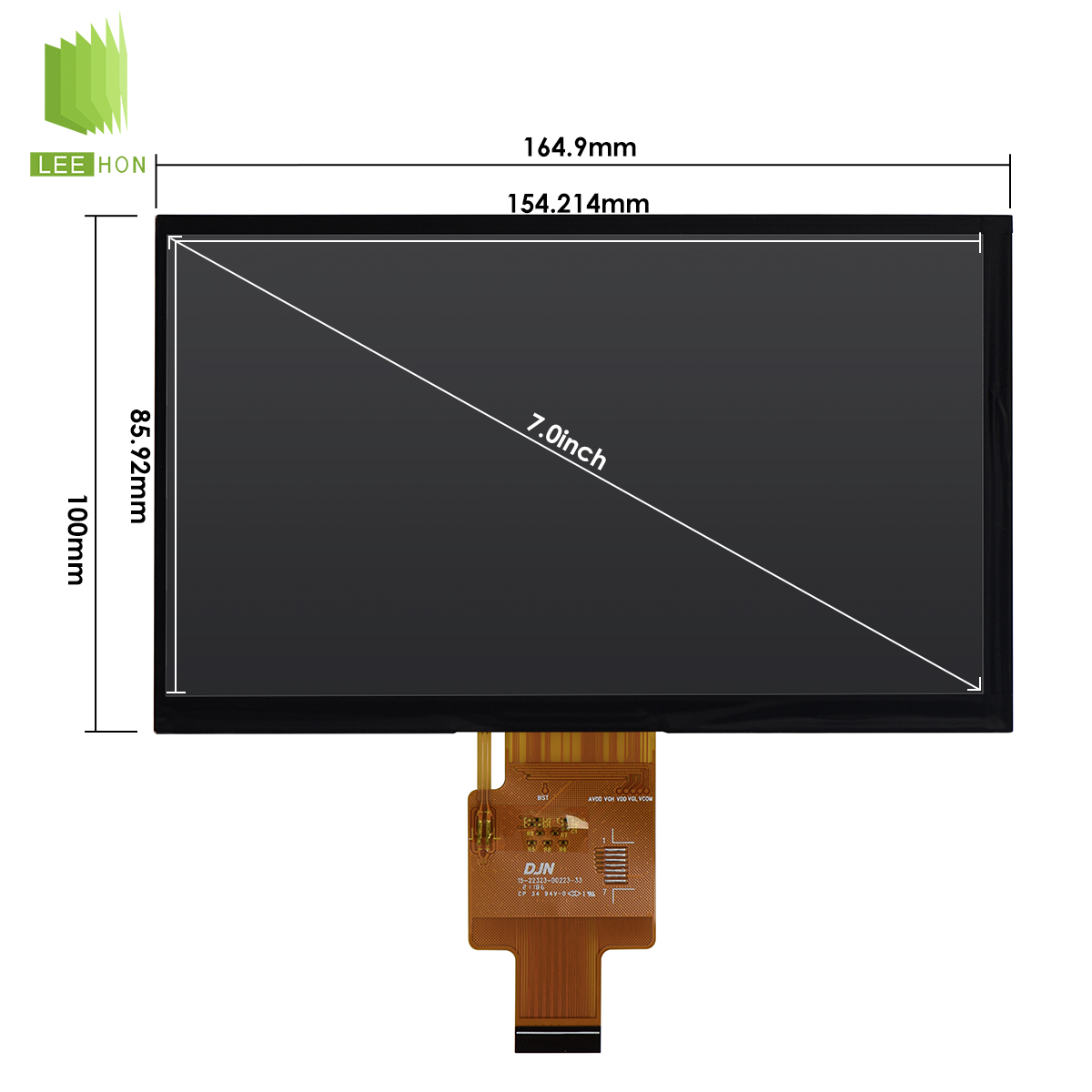

| Active Area(mm) | 154.2144 x 85.92 (H×V) |
| Outline(mm） | 164.9 x 100 x 3.06 (H×V×D) |
| Pixel Pitch(mm) | 0.0502 x 0.1432 (H×V) |
| Treatment | (Haze 25%)，Hard coating (3H) |
| Luminance | 350 cd/m² (Typ.) |
| Contrast Ratio | 800 : 1 (Typ.) (TM) |
| Viewing Angle | 85/85/85/85 (CR≥10) Left / Right/UP /Down |
| Response time | 30 (Typ.)(Tr/Td) ms |
| Display Mode | ADS , Normally black , Transmissive |
| Color Depth | 16.7M , 50% NTSC |
| Backlight | WLED , without Driver |
| Net Weight | TBD |
| Touchscreen | without |

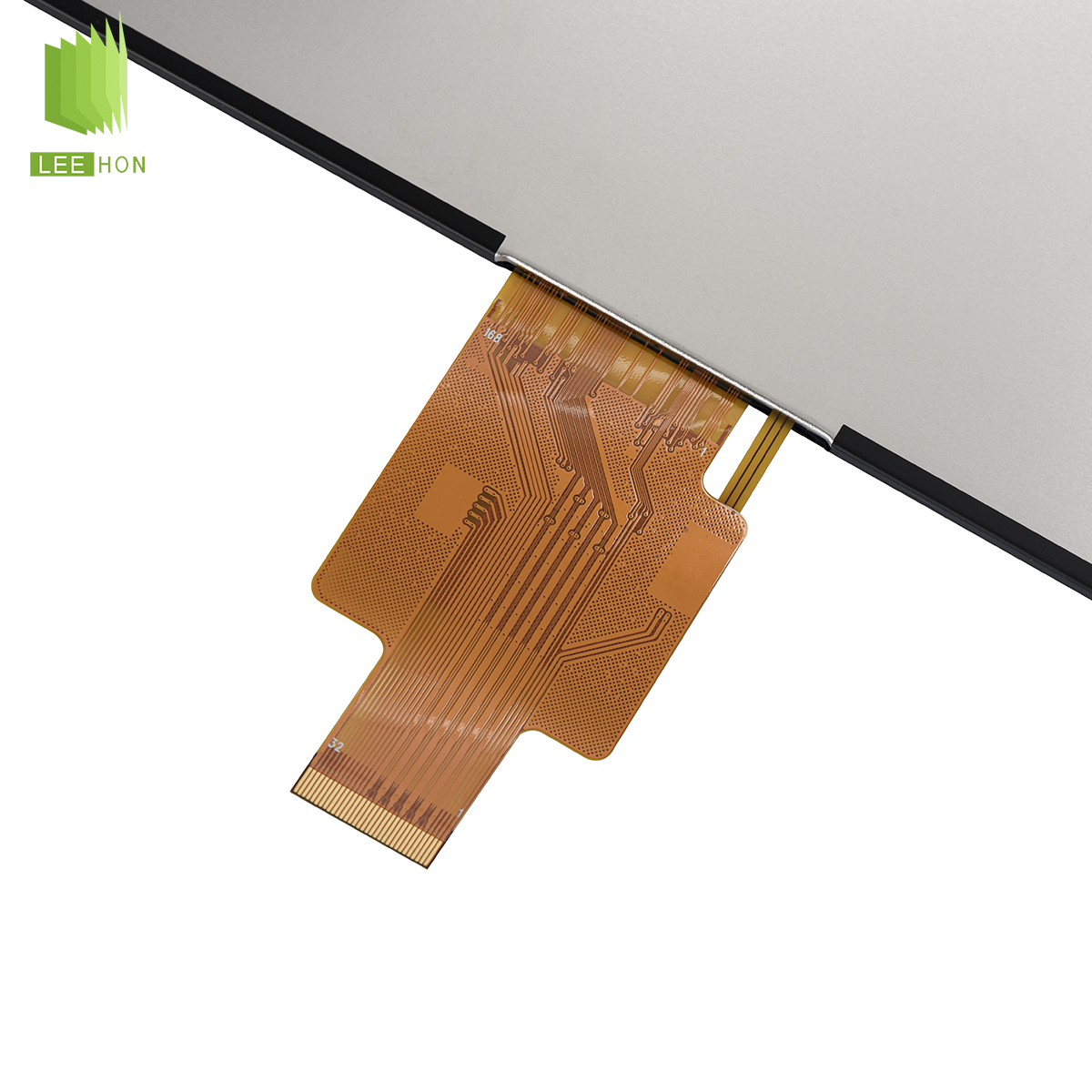

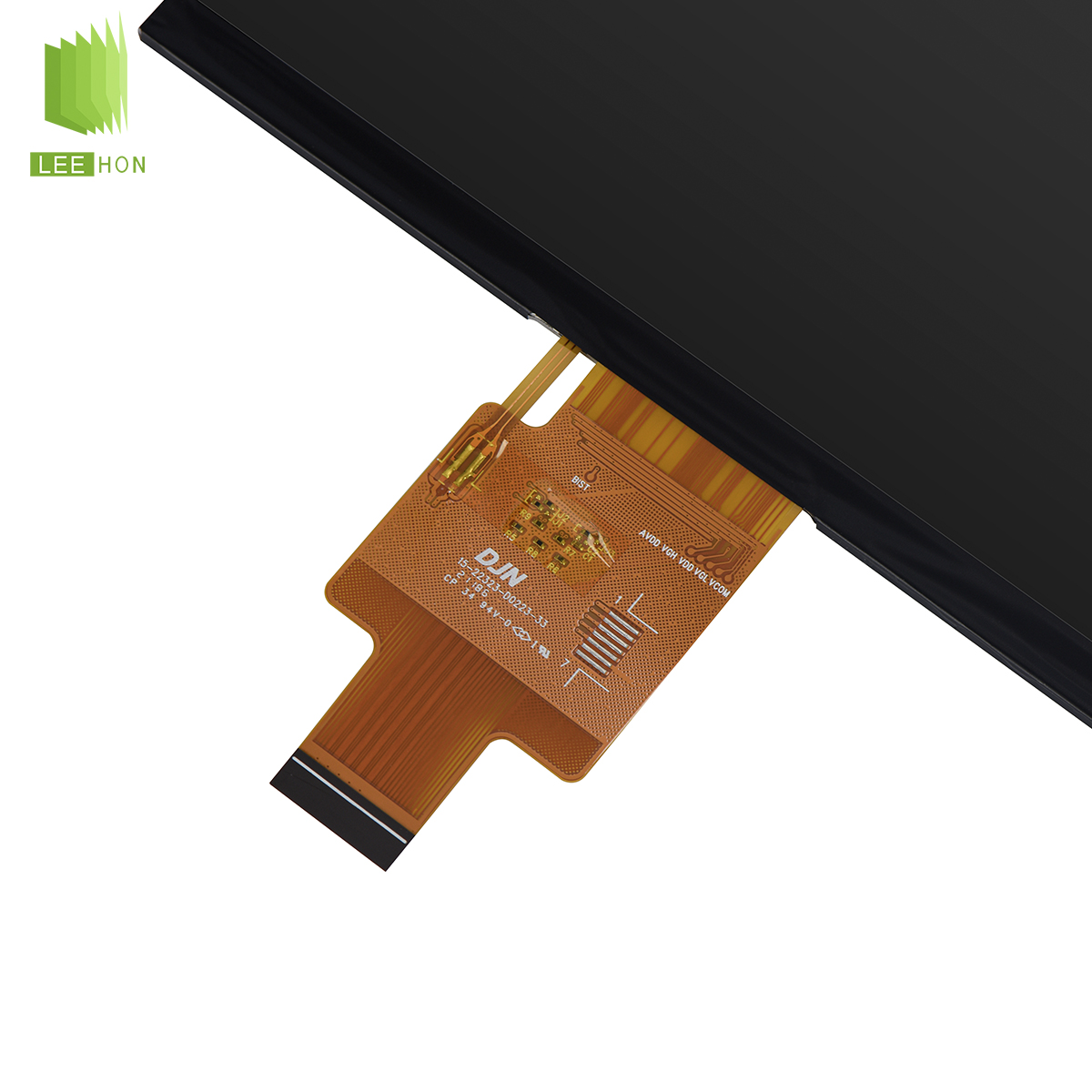

| Signal Type/interface Type | LVDS (1 ch, 8-bit) , FPC , 32 pins |
| Voltage Supply | +3.3 V |
| Max. Ratings |
Storage Temp.: -30 ~ +80 (°C) Operating Temp.: -20 ~ +70 (°C) |
| Package |
BOE Original package; 40 pcs/box |
