| Manufacturer | BOE |

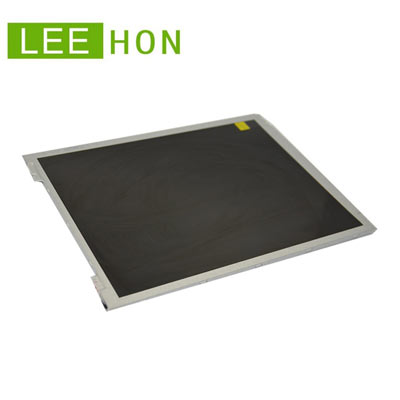

| Model Name | GT080X0M-N12-1QP0 |
| Screen Size | 8 inch |
| Pixel Number | 1024(RGB)×768 XGA |
| Active Area(mm) |
162.05 (H) × 121.5(V)mm
|
| Outline(mm） |
183.0 (H) × 141.0(V) × 5.6(D)mm
|
| Bezel Area(mm) | 162.05(h)×121.5(v) mm |
| Luminance | 400 cd/m² (Typ.) |
| Contrast Ratio | 800 : 1 (Typ.) (TM) |
| Viewing Angle | 75/75/75/70 |
| Response | 20 ms |
| Work Mode |
Normally White
|
| Color Depth | 16.2M , 50% NTSC |
| Backlight | WLED,without LED driver |
| Net Weight | TBD |
| Touchscreen | without |
| Signal Type/interface Type | 40 pins LVDS (1 ch, 8-bit) , FPC |
| Max. Ratings |
Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~70 °C |
| Package | BOE original packaging |
Hangzhou LEEHON Technology is one of the main agents of AUO/BOE / Kyocera/ Innolux TFT- LCD module in China mainland, founded in 2009, the products vary from 2.5 to 43 inches, which include GD (Industrial grade), AV (car class), PID (General Application) and other related products etc.,superior quality and competitive price, our products are sold very well in North&South America, Western Europe and Southeast Asia.
